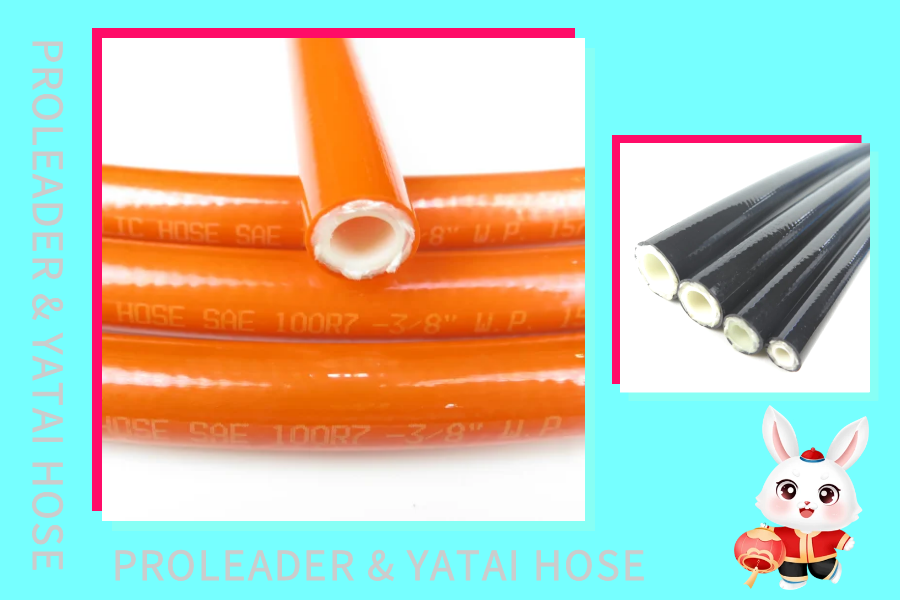

NO.1 SAE 100 R7 Textile Braided Nylon Resin Hose
Inner diameter: 1/8"~2"
Inner rubber: PA11, PA12
Reinforcement: One layer of polyester thread braid
Outer rubber: PU
Working pressure: 30~172bar
Temperature range: -40°C~+100°C
Appearance: Smooth; black or colored, double and triple resin hoses can be customized
Application: Suitable for fluid transportation in vehicles, ships, engineering machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries

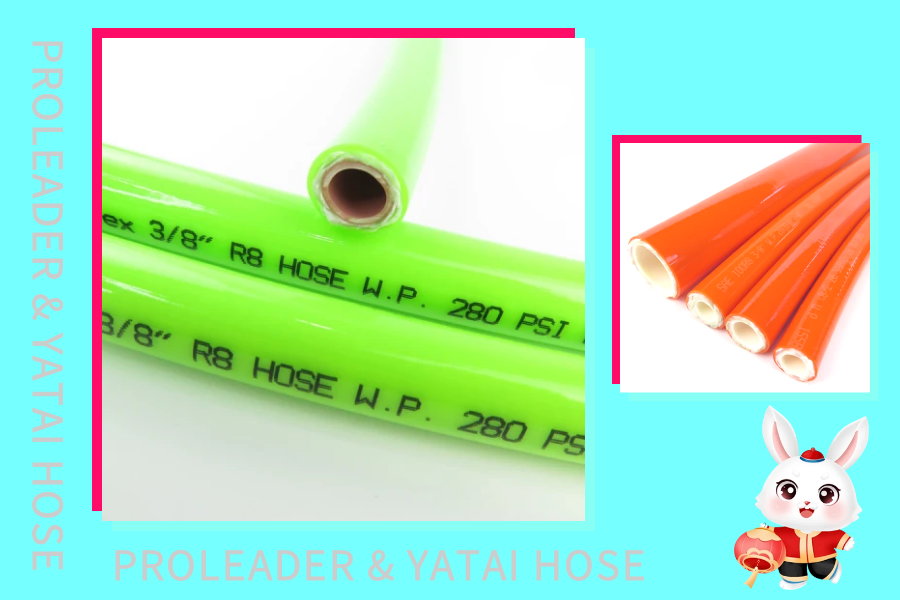

NO.2 SAE 100 R8 Textile Braided Nylon Resin Hose
Inner diameter: 1/8"~2"
Inner rubber: PA11, PA12
Reinforcement: two layers of polyester thread braiding
Outer rubber: PU
Working pressure: 50~350bar
Temperature range: -40°C~+100°C
Appearance: Smooth; black or colored, double and triple resin hoses can be customized
Application: Suitable for fluid transportation in vehicles, ships, engineering machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries

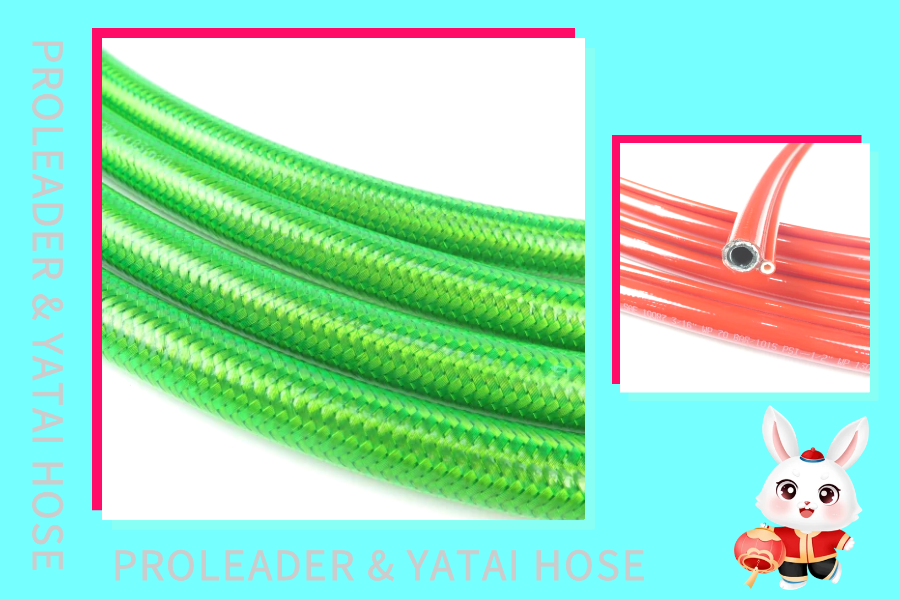

NO.3 SAE 100 R7 Wire Braided Nylon Resin Hose
Inner diameter: 3/16"~1"
Inner rubber: PA11, PA12
Reinforcement: One layer of copper-plated steel wire braid
Outer rubber layer: PU
Working pressure: 97~250bar
Temperature range: -40°C~+100°C
Appearance: Smooth; black or colored, double and triple resin hoses can be customized
Application: Suitable for fluid transportation in vehicles, ships, engineering machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries

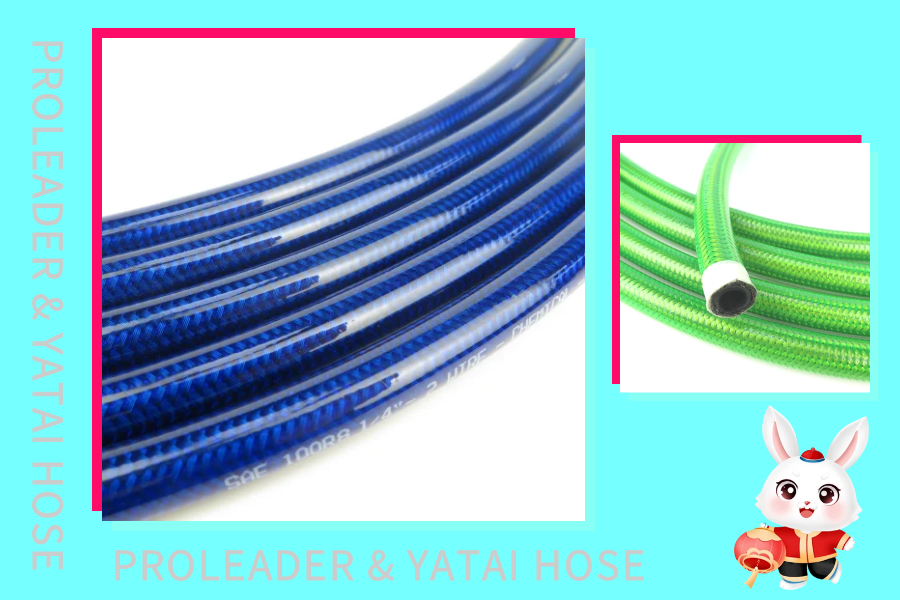

NO.4 SAE 100 R8 2 Layer Wire Braid Nylon Resin Hose
Inner diameter: 3/16"~1"
Inner rubber: PA11, PA12
Reinforcement: two layers of copper-plated steel wire braid
Outer rubbe: PU
Working pressure: 165~415bar
Temperature range: -40°C~+100°C
Appearance: Smooth; black or colored, double and triple resin hoses can be customized
Application: Suitable for fluid transportation in vehicles, ships, engineering machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries
