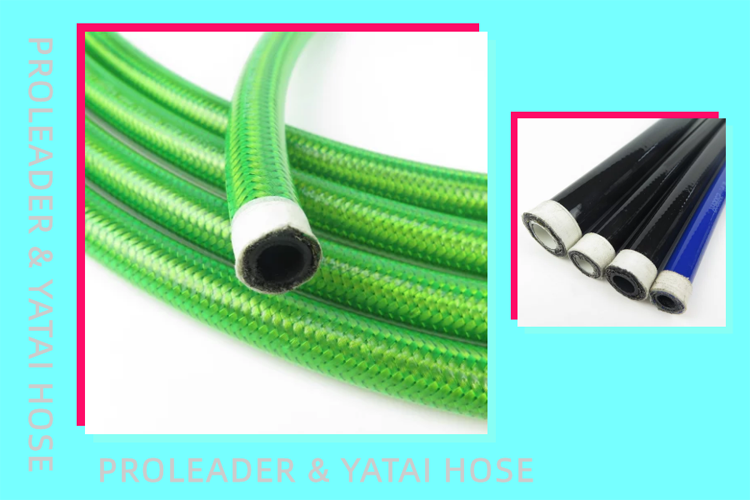

NO.1 SAE 100 R7 Textile Braided Nylon Resin Hose
Inner diameter: 3.2-50.8mm
Inner Tube: PA11, PA12 nylon
Reinforcement : one layer of polyester thread woven
Outer Tuber: PU polyurethane
Temperature range:-40 °C~ 100°C
Working pressure: 30Bar-172Bar
Appearance color: black or color, can be customized double triple resin tube
Hose use: suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries
NO.2 SAE 100 R8 Textile Braided Nylon Resin Hose
Inner diameter: 3.2-50.8mm
Inner Tube: PA11, PA12 nylon
Reinforcement: two-layer polyester thread weaving
Outer Tuber: PU polyurethane
Temperature range:-40 °C~ 100°C
Working pressure: 50Bar-350Bar
Appearance color: black or color, can be customized double triple resin tube
Hose use: suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries
NO.3 SAE 100 R7 Wire Braided Nylon Resin Hose
Inner diameter: 4.8-25mm
Inner Tube: PA11, PA12 nylon
Reinforcement: one layer of copper-plated steel wire braided
Outer Tube: PU polyurethane
Temperature range:-40 °C~ 100°C
Working pressure: 97Bar-250Bar
Appearance color: black or color, can be customized double triple resin tube
Hose application: suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mines, paint spraying, aerospace, refrigeration and other industries.

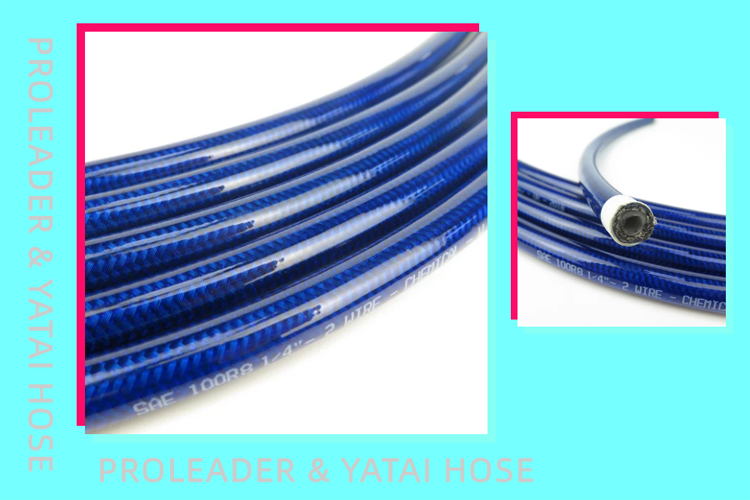

NO.4 SAE 100 R8 2 Layer Wire Braid Nylon Resin Hose
Inner diameter: 4.8-25mm
Inner Tube: PA11, PA12 nylon
Reinforcement: two layers of copper-plated steel wire braid
Outer Tube: PU polyurethane
Temperature range:-40 °C~ 100°C
Working pressure: 165Bar-415Bar
Appearance color: black or color, can be customized double triple resin tube
Hose application: suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mines, paint spraying, aerospace, refrigeration and other industries.
