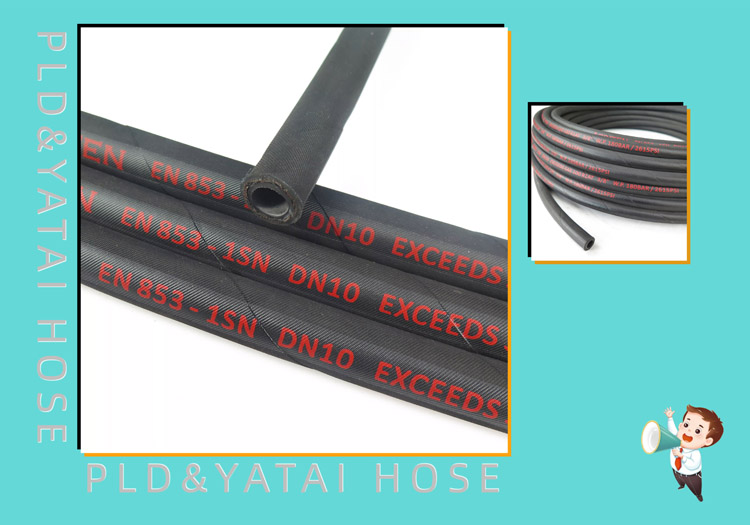

NO.1 SAE 100 R1/EN853 1SN High Pressure Oil Hose
Inner Diameter: 5-102mm
Inner tube: NBR Nitrile
Reinforcement: one layer of steel wire braid
Cover: CR Neoprene
Temperature range: -40℃~120℃
Working pressure: 10-250Bar
Appearance color: black or color, cloth or smooth hose
Use: used for mine hydraulic support, oilfield mining, engineering construction, injection molding machinery, agricultural machinery, various machine tool castings, as well as compressors, hydraulic equipment in engine compartments, etc. .

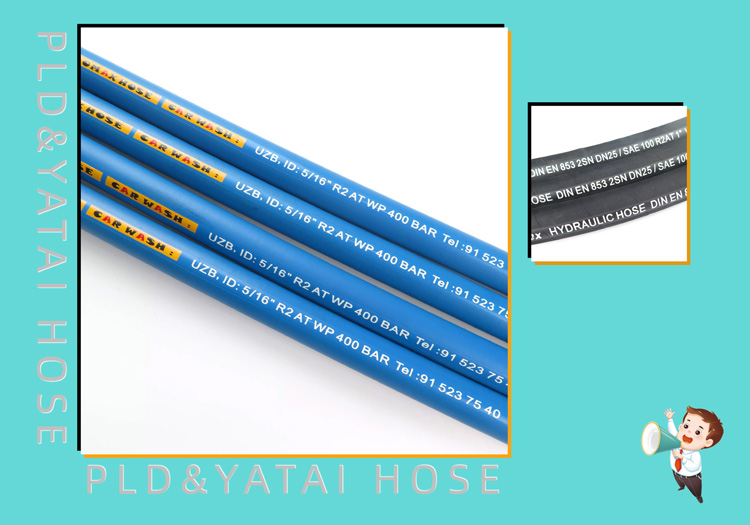

NO.2 SAE 100 R2/EN853 2SN High Pressure Oil Hose
Inner Diameter: 5-203mm
Inner Tube: NBR Nitrile
Reinforcement : two-layer steel wire braid
Cover: CR Neoprene
Temperature range: -40℃~120℃
Working pressure: 20-415Bar
Appearance color: black or color, cloth or glossy
Use: hydraulic oil, mineral oil, vegetable oil, glycol and polyethylene glycol base oil, synthetic ester base oil, emulsified oil, water.

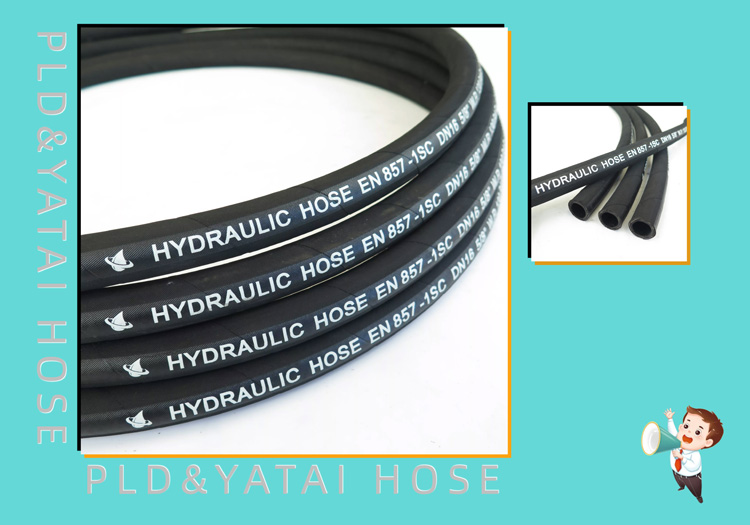

NO.3 EN857 1SC Hydraulic Hose
Inner Diameter: 5-51mm
Inner Tube: NBR Nitrile Rubber
Reinforcement : One layer of steel wire braid
Cover: CR Neoprene
Temperature range: -40℃~120℃
Working pressure: 40-225Bar
Appearance color: black or colored, cloth surface or glossy surface
Use: high flexibility, extremely small bending radius, medium and high pressure pipes, oil return pipes and suction pipes with narrow installation space.

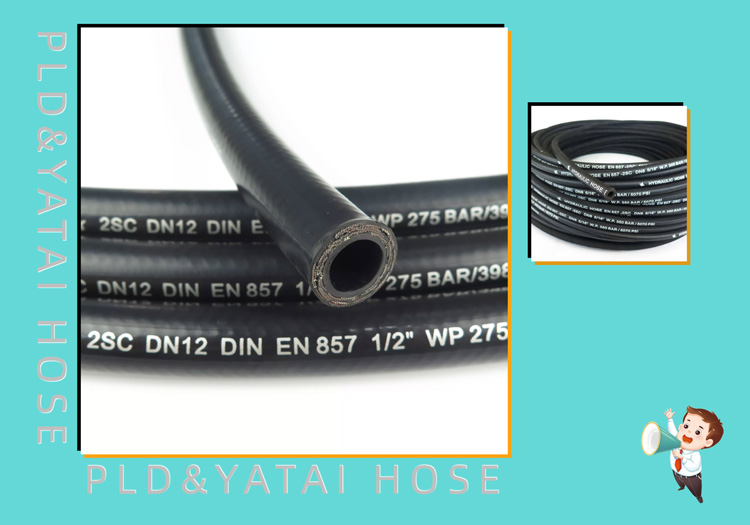

NO.4 EN857 2SC High Pressure Oil Hose
Inner diameter: 5-51mm
Inner tube: NBR nitrile
Reinforcement: two-layer steel wire braid
Cover: CR Neoprene
Temperature range: -40℃~120℃
Working pressure: 90-400Bar
Appearance color: black or color, cloth or glossy
Hose characteristics: extremely small bending radius, light weight, can be used in tight spaces. Strong bearing pressure, not easy to wear, oil resistance, small deformation under working pressure, good pulse performance.
