In the golden autumn of October, the fragrance of osmanthus blooms. In the magnificent autumn colors, the four-day 2023PTC exhibition came to an end at the New International Expo Center, with the top ten upstream and downstream industry exhibitions jointly presented. Over the 4 days, the continuous flow of audiences and enthusiastic interactions have allowed us to receive recognition and affirmation from our friends, and also made us feel more cooperation and communication opportunities brought by the industry.

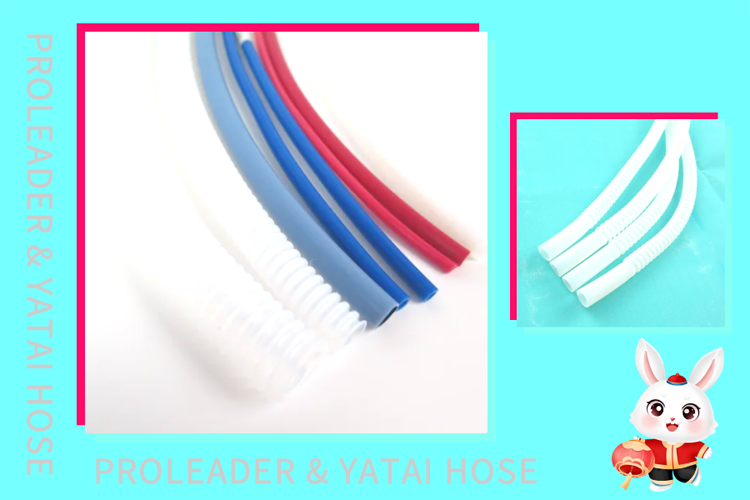

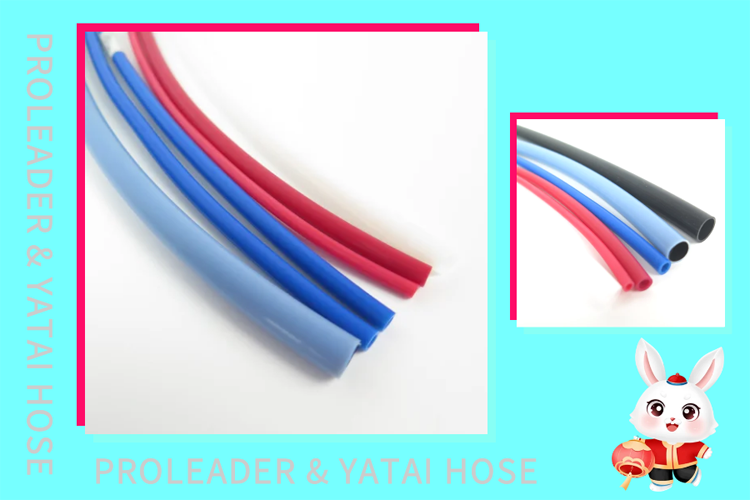

NO.1 PTFE/FEP/PFA Smooth/ Convoluted Tube
Inner diameter:1/16"~2"
Inner tube: PTFE/FEP/PFA
Working pressure: 2~15bar
Temperature range: PTFE temperature resistance -65°C~+260°C; FEP/PFA temperature resistance -85°C~+180°C
Appearance: white, transparent, colored
Application: Suitable for strong acid, strong alkali, coolant, ethylene glycol, methyl glycol, diesel, gasoline; suitable for various fluids such as high-temperature oil, high-temperature water, high-temperature steam, petrochemical industry, food and medicine, etc.
NO.2 PTFE/FEP Convoluted with Cuff
Inner diameter: 1/8"~1"
Inner tube: PTFE/FEP
Working pressure: 3~4bar
Temperature range: PTFE temperature resistance -65°C~+260°C; FEP temperature resistance -65°C~+180°C
Appearance: white, transparent, colored
Application: Suitable for various fluids such as strong acid, strong alkali, coolant, ethylene glycol, methyl glycol, diesel, gasoline, etc.

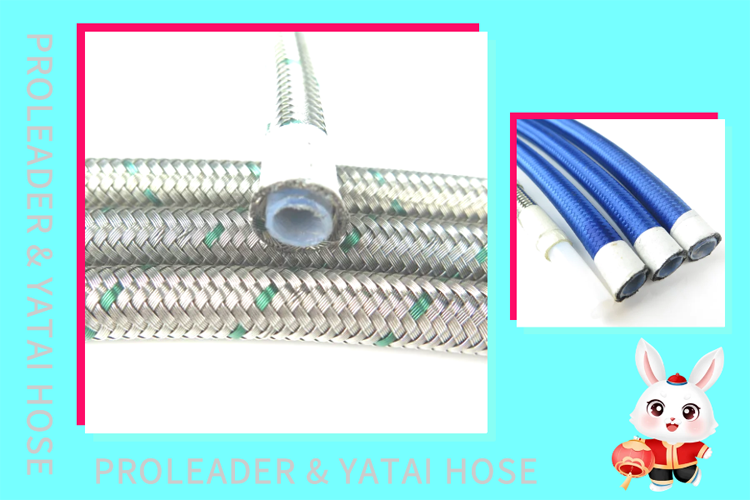

NO.3 SAE 100 R14 Smooth Core PTFE Hose
Inner diameter: 1/8"~2"
Inner tube: PTFE, which can increase anti-static
Enhancement: SS304 or SS316
Covering: PU PVC TPU PVDF glass fiber, silicone, polyester, aramid, etc.
Working pressure: 30~250bar
Temperature range: -65°C ~+260°C
Appearance: black, white or color
Application: Excellent high and low temperature resistance, chemical resistance, oil resistance, non-stickiness, smooth surface, low friction coefficient and aging resistance

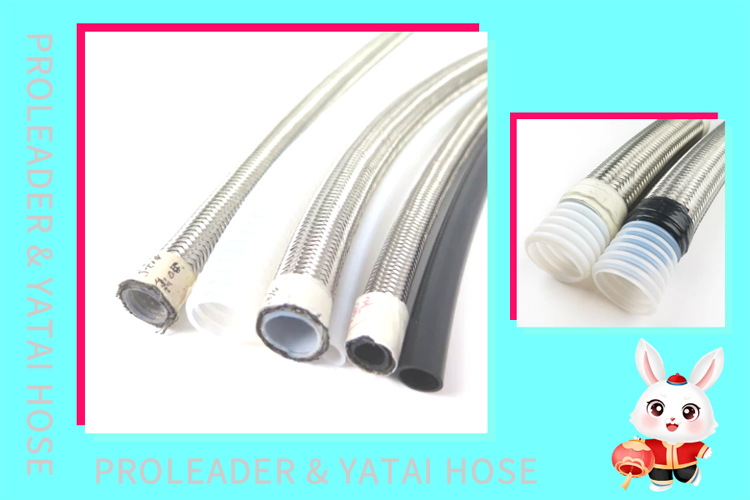

NO.4 SAE 100 R14 Corrugated PTFE Hose
Inner diameter: 3/16"~2"
Inner tube: PTFE, which can increase anti-static
Enhancement: SS304 or SS316
Covering: PU PVC TPU PVDF glass fiber, silicone, polyester, aramid, etc.
Working pressure: 16~152bar
Temperature range: -65°C ~+260°C
Appearance: black, white or color
Application: Excellent high and low temperature resistance, chemical resistance, oil resistance, non-stickiness, smooth surface, low friction coefficient and aging resistance
