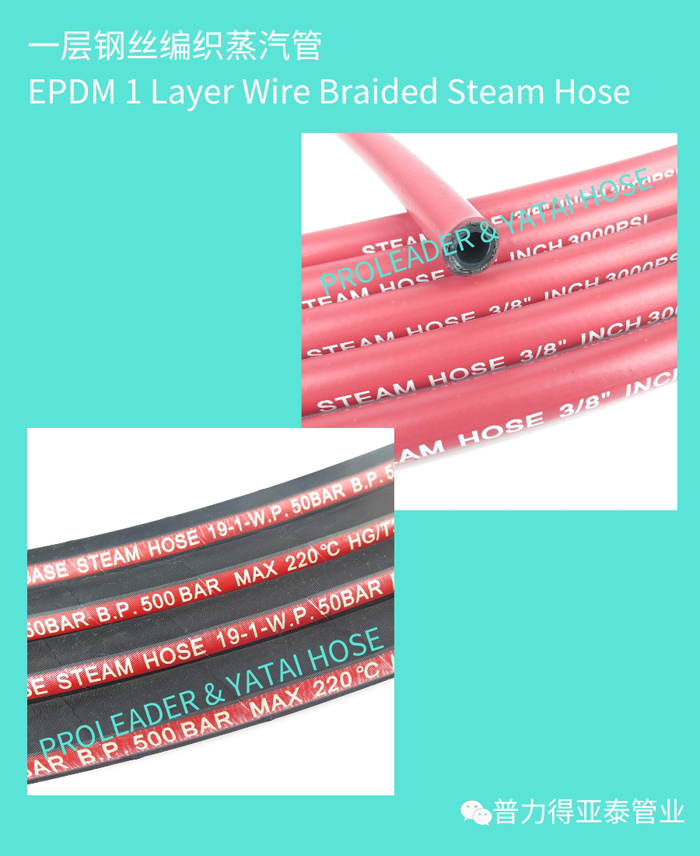

NO.1 EPDM 1 Layer Wire Braided Steam Hose
Inner diameter: 3/16 "-2"
Inner rubber layer: EPDM
Reinforcement layer: One layer of copper plated steel wire woven
Outer rubber layer: Heat resistant and weather resistant EPDM rubber
Working pressure: 40-250 bar
Application: Suitable for conveying steam, hot water, and hot air
Temperature range: -40 ℃~+220 ℃
Color: Black or red
NO.2 EPDM 2 Layer Wire Braided Steam Hose
Inner diameter: 3/16 "-2"
Inner rubber layer: EPDM
Reinforcement layer: Two layers of copper plated steel wire weaving
Outer rubber layer: Heat resistant and weather resistant EPDM rubber
Working pressure: 80-415 bar
Application: Suitable for conveying steam, hot water, and hot air
Temperature range: -40 ℃~+220 ℃
Color: Black or red

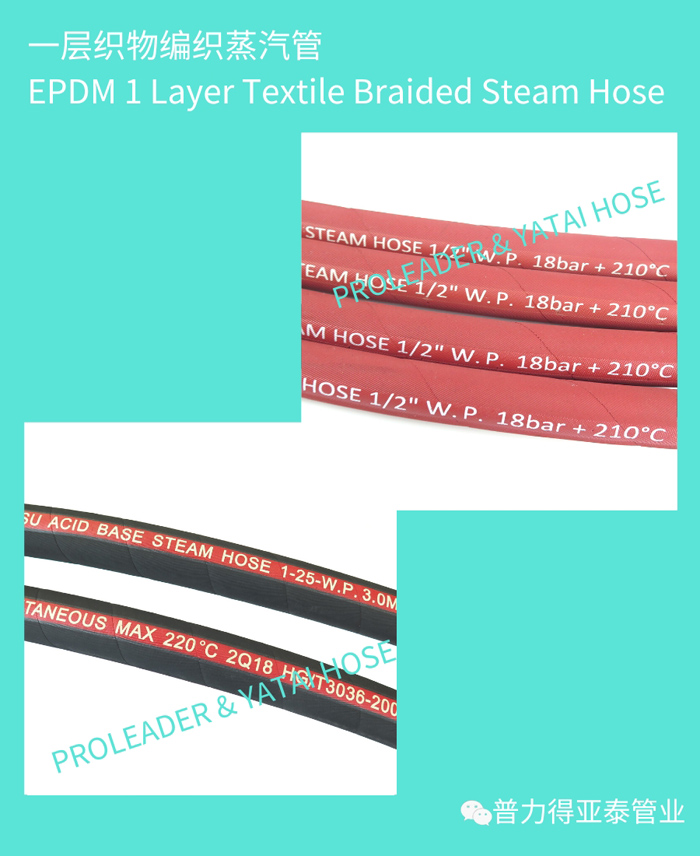

N0.3 EPDM 1 Layer Textile Braided Steam Hose
Inner diameter: 3/16 "-2"
Inner rubber layer: EPDM
Reinforcement layer: One layer of polyester filament weaving
Outer rubber layer: Heat resistant and weather resistant EPDM rubber
Working pressure: 10-35 bar
Application: Suitable for conveying steam, hot water, and hot air
Temperature range: -40 ℃~+220 ℃
Color: Black or red

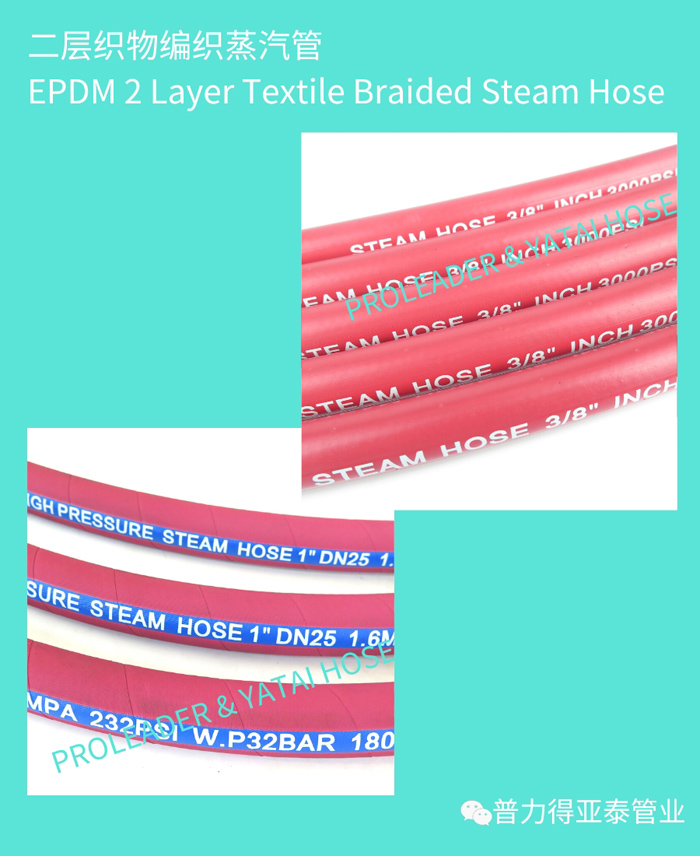

NO.4 EPDM 2 Layer Textile Braided Steam Hose
Inner diameter: 3/16 "-2.3/8"
Inner rubber layer: EPDM
Reinforcement layer: Two layers of polyester filament weaving
Outer rubber layer: Heat resistant and weather resistant EPDM rubber
Working pressure: 25-160 bar
Application: Suitable for conveying steam, hot water, and hot air
Temperature range: -40 ℃~+220 ℃
Color: Black or red

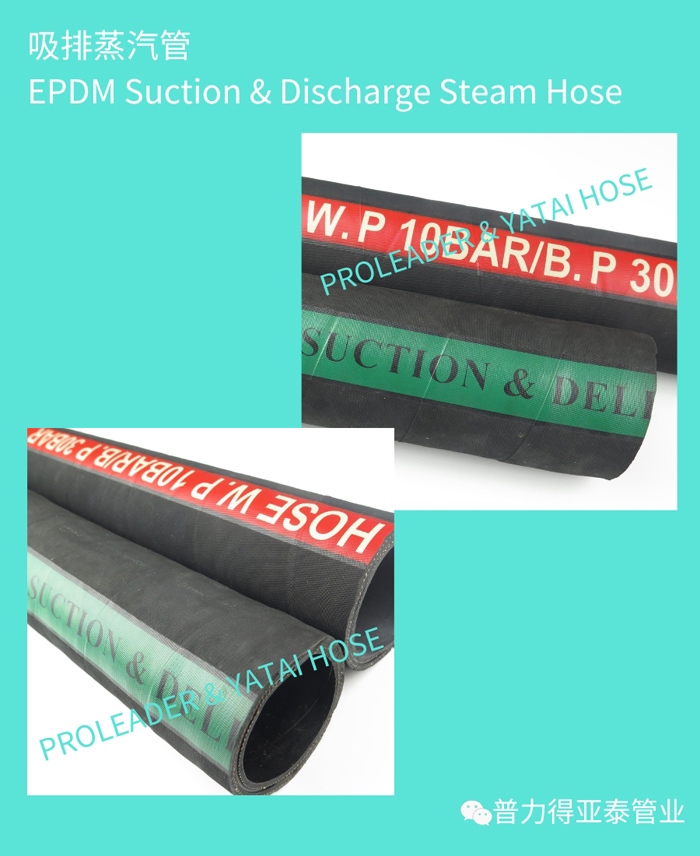

NO.5EPDM Suction & Discharge Steam Hose
Inner diameter: 3/4 "-6"
Inner rubber layer: EPDM
Reinforcement layer: High-strength polyester cord with spiral steel wire
Outer rubber layer: Heat resistant and weather resistant EPDM rubber
Working pressure: 10 bar
Application: Suitable for suction and discharge of steam, hot water, and hot air
Temperature range: -40 ℃~+220 ℃
Color: Black or red
