NO.1 1 Layer Wire Braided Pressure Washer Hose
Inner diameter: 1/4"~1/2"
Inner rubber: NBR
Reinforcement: one layer of copper-plated steel wire braid
Outer rubber: wear-resistant and weather-resistant CR
Working pressure: 250bar
Temperature range: -40°C~+100°C
Appearance: smooth or wrapped; Color: black, blue, gray, etc.
Application: Suitable for high-pressure cleaning, water blasting, rust removal, paint removal, concrete cleaning, high-pressure cleaners, pipe dredging and other equipment
NO.2 2 Layer Wire Braided Pressure Washer Hose
Inner diameter: 1/4"~1/2"
Inner rubber: NBR
Reinforcement: two layers of copper-plated steel wire braid
Outer rubber: wear-resistant and weather-resistant CR
Working pressure: 400bar
Temperature range: -40°C~+100°C
Appearance: smooth or wrapped; Color: black, blue, gray, etc.
Application: Suitable for high-pressure cleaning, water blasting, rust removal, paint removal, concrete cleaning, high-pressure cleaners, pipe dredging and other equipment
NO.3 1 Layer Wire Braided High Temperature Washer Hose
Inner diameter: 1/4"~1/2"
Inner rubber: EPDM
Reinforcement: one layer of copper-plated steel wire braid
Outer rubber: wear-resistant and weather-resistant EPDM
Working pressure: 250bar
Temperature range: -40°C~+180°C
Appearance: smooth or wrapped; Color: black, blue, gray, etc.
Application: Suitable for high-pressure cleaning, water blasting, rust removal, paint removal, concrete cleaning, high-pressure cleaners, pipe dredging and other equipment
NO.4 2 Layer Wire Braided High Temperature Washer Hose
Inner diameter: 1/4"~1/2"
Inner rubber: EPDM
Reinforcement: two layers of copper-plated steel wire braid
Outer rubber: wear-resistant and weather-resistant EPDM
Working pressure: 400bar
Temperature range: -40°C~+180°C
Appearance: smooth or wrapped; Color: black, blue, gray, etc.
Application: Suitable for high-pressure cleaning, water blasting, rust removal, paint removal, concrete cleaning, high-pressure cleaners, pipe dredging and other equipment

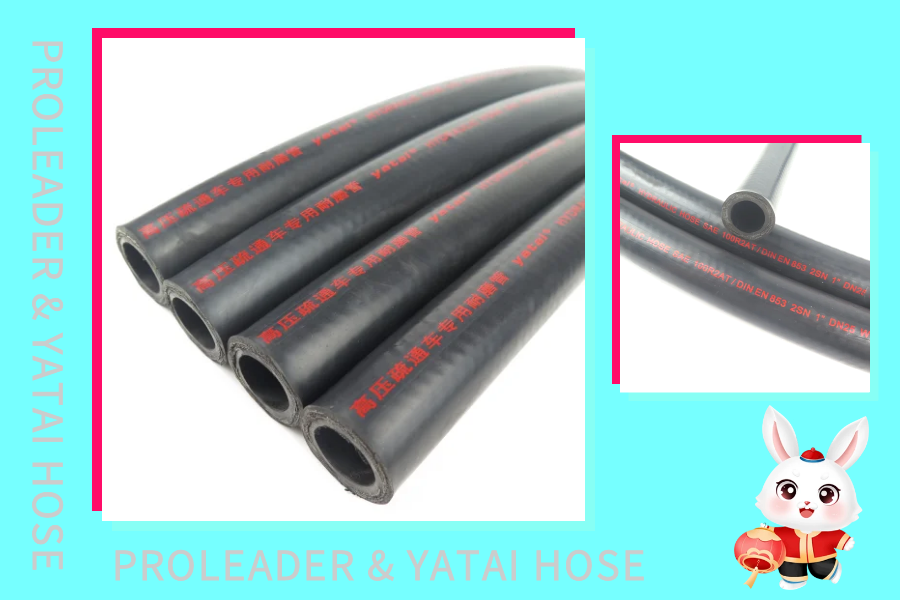

NO.5 High Pressure Washer Hose For Dredging Truck
Inner diameter: 5/8"~1"
Inner rubber: NBR
Reinforcement: two layers of copper-plated steel wire braid
Outer rubberr: wear-resistant and weather-resistant SBR or coated PU
Working pressure: 165-250bar
Temperature range: -40°C~+100°C
Appearance: smooth or wrapped; Color: black, blue, gray, etc.
Application: Used for medium pressure, high pressure cleaning, municipal pipeline dredging vehicle, pipeline dredging machine
NO.6 Waterblast Hose
Inner diameter: 1/4"~1"
Inner rubber: NBR
Reinforcement: Four layers of copper-plated steel wire winding
Outer rubber: wear-resistant and weather-resistant SBR or coated PU
Working pressure: 800bar
Temperature range: -40°C~+100°C
Appearance: smooth or wrapped
Application: Suitable for large equipment cleaning
There are two months before the opening of the 27th Asia International Power Transmission and Control Technology Exhibition (PTC ASIA) Shanghai PTC in 2023!
Time: October 24-27, 2023
Venue: Shanghai New International Expo Center (No. 2345, Longyang Road, Pudong New Area, Shanghai)
Our booth number: E3-L20 sincerely invites you to visit us!
