NO.1 UPE Chemical Hose
Inner diameter: 5-25mm
Inner Lining: UPE lining
Inner & outer Rubber: EPDM rubber
Reinforcement: One or two layers of copper-plated steel wire
Temperature range: -40℃~180℃
Working pressure: 87-415Bar
Appearance color: Black smooth or wrapped
Features: Extremely high wear resistance, strong impact resistance, low friction coefficient, good chemical resistance, low water absorption, low temperature resistance, excellent electrical properties, non-toxic and tasteless.
Application of hose: transport 98% concentration of chemical hose solvent and corrosive liquid.

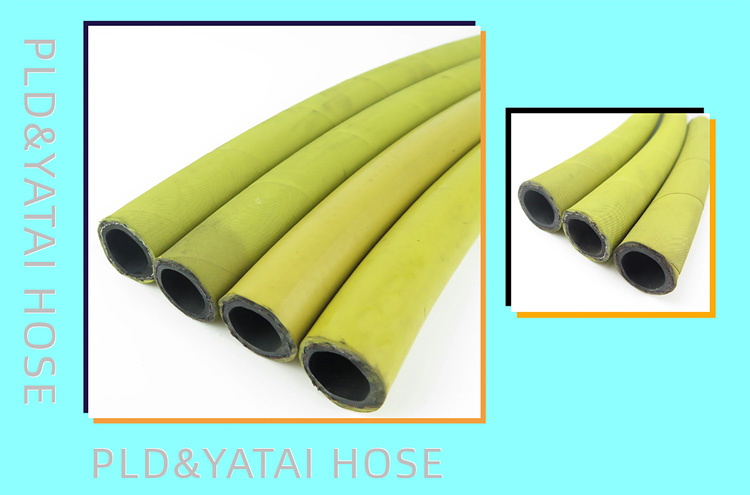

NO.2 Yellow Wire Braid Air Hose
Inner diameter: 6-51mm
Inner Rubber: NBR nitrile rubber
Reinforcement: One layer of steel wire braid
Cover: CR Neoprene
Temperature range: -40℃~120℃
Working pressure: 40-250Bar
Appearance color: Yellow smooth or wrapped
Application: conveying ordinary or compressed air, strong bearing pressure, not easy to wear, not easy to deform, good pulse performance, can be customized in various colors.
NO.3 Cable Protection Hose / Threading Hose
Inner diameter: 6-64mm Inner layer: NBR nitrile rubber
Reinforcement: one layer of steel wire braid
Cover: CR Neoprene
Temperature range: -40℃~120℃
Working pressure: 10-250Bar
Appearance color: Black Wrapped
Application: Used for cable protection in mining machinery, tunnel traffic, electric power, engineering and other industries, with flame retardant performance; Used in high temperature, dusty, vibration and fire hazard places and humid places.
NO.4 Low Temperature Resistant Hose
Inner diameter: 5-51mm
Inner Rubber: NBR nitrile rubber
Reinforcement: One or two layers of high tensile steel wire braid
Cover: ozone-resistant, heat- and weather-resistant synthetic rubber
Temperature range: -55°C ~100°C
Working pressure: 40-415Bar
Appearance color: black or color, smooth and wrapped
Features: Used in medium and low pressure hoses, extreme temperature conditions (casting, compressors, hydraulic equipment in the engine compartment, etc.)
