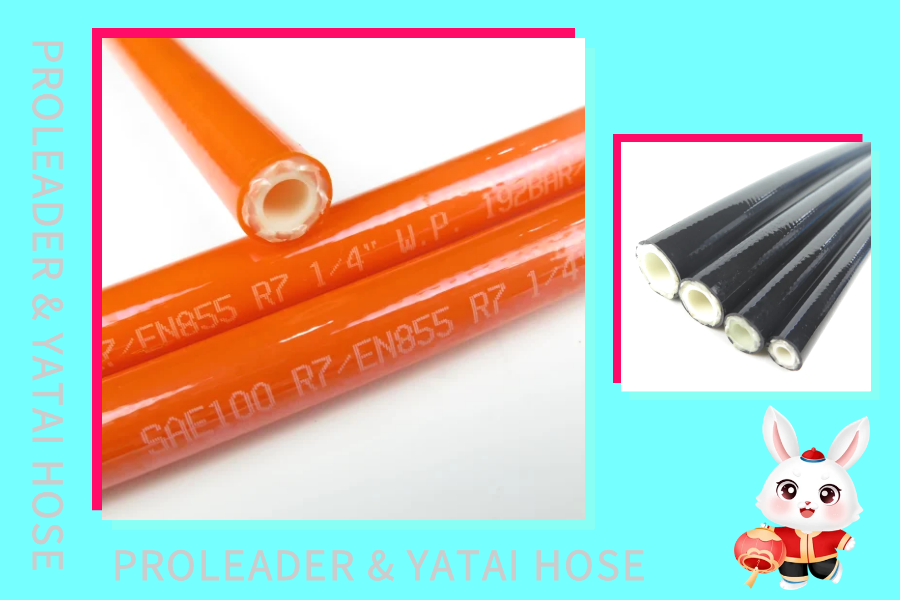

NO.1 SAE 100 R7 Textile Braided Nylon Resin Hose
I.D.: 1/8 "~ 2"
Inner layer: PA11, PA12
Outer layer: PU
Reinforcement: a layer of polyester thread weaving
Temperature range:-40°C ~ 100°C
Working pressure: 30 ~ 172bar
Color: black or color, can be customized duplex triple resin hose
Application: Suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries.

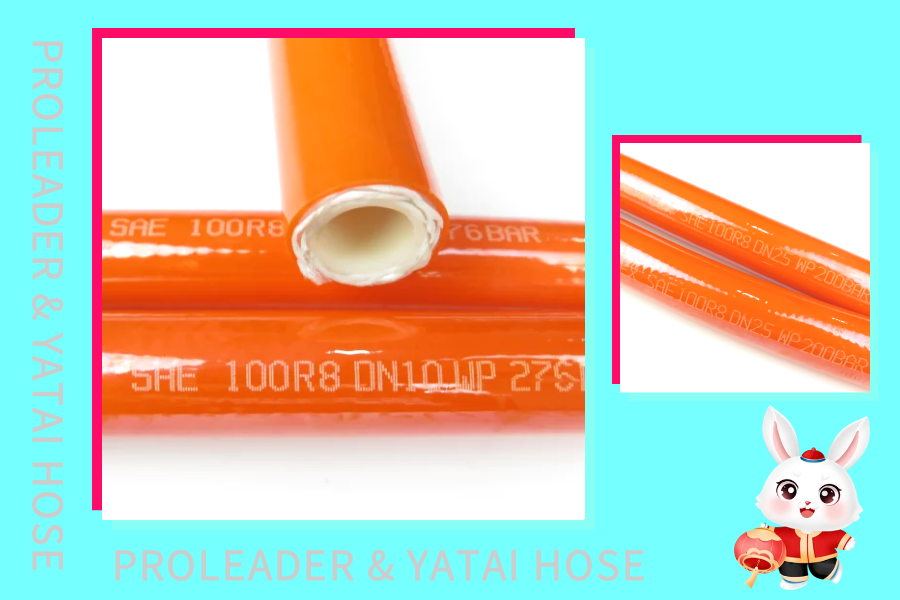

NO.2 SAE 100 R8 Textile Braided Nylon Resin Hose
I.D.: 1/8 "~ 2"
Inner layer: PA11, PA12
Outer layer: PU
Reinforcement: two layers of polyester line weaving
Temperature range:-40°C ~ 100°C
Working pressure: 50 ~ 350bar
Color: black or color, can be customized duplex triple resin hose
Application: Suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries.
NO.3 SAE 100 R7 Wire Braided Nylon Resin Hose
I.D.: 3/16 "~ 1"
Inner layer: PA11, PA12
Outer layer: PU
Reinforcement: a layer of copper-plated steel wire braid
Temperature range:-40°C ~ 100°C
Working pressure: 97 ~ 250bar
Color: black or color, can be customized duplex triple resin hose
Application: Suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries.
NO.4 SAE 100 R8 2 Layer Wire Braid Nylon Resin Hose
I.D.: 3/16 "~ 1"
Inner layer: PA11, PA12
Outer layer: PU
Reinforcement: two layers of copper-plated steel wire braid
Temperature range:-40°C ~ 100°C
Working pressure: 165 ~ 415bar
Color: black or color, can be customized duplex triple resin hose
Application: Suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries.
NO.5 Nylon pressure test hose assembly
① Nylon pressure test hose
Common I.D.: 2mm, 2.5mm,3mm,3.2mm, can be customized
Inner layer: low temperature resistance, anti-aging, chemical resistance, corrosion resistance of PA11, PA12
Outer layer: PU
Reinforcement: Kevlar fiber
Temperature range:-40 ℃ ~ 100 ℃
Working pressure: 40-64mpa
Application Standard: DIN20024
② Pressure measuring joint
Common joint types: SD pressure measuring joint, DKO-24° pressure measuring joint, JIC-37°flared pressure measuring joint, CR-ferrule external thread pressure measuring joint, ORFS-plane seal pressure measuring joint, BH-diaphragm type pressure measuring joint, T-three-way pressure measuring joint, 90-degree pressure measuring joint.
Application: Generally connected with a pressure measuring hose. There is a corresponding thimble in the pressure measuring hose (there is also a dust cap with a thimble). When the pressure measuring connector acts alone, the self-sealing valve is closed due to the action of the spring. When the pressure measuring hose is connected, the thimble can open the self-sealing valve, and the fluid in the hydraulic system flows out, so that sampling or pressure testing can be carried out.
* One-stop service: ① Nylon hose + fitting; ② Nylon presure test hose + joint. The combination is that simple! We’ll provide free withholding service for new and old customers in 2023, good products and good policies, and look forward to your patronage!
