Powerful driving requires more brake awesome

May. 22, 2023

Powerful driving requires more brake awesome

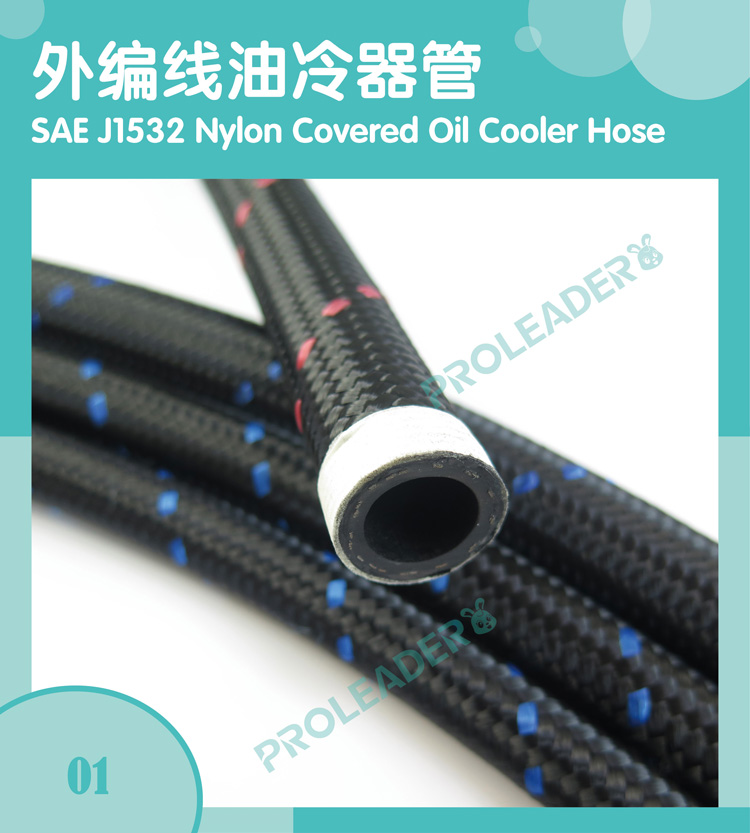

NO.1  SAE J1532 Nylon Covered Oil Cooler Hose

Tube: NBR

Reinforcement: SS 304 braid

Cover: One layer textile braid

Size range:AN4 ~ AN16

Application: Used to refit car oil cooler accessories

Temperature Range: -40°C~+135°C

Powerful driving requires more brake awesome

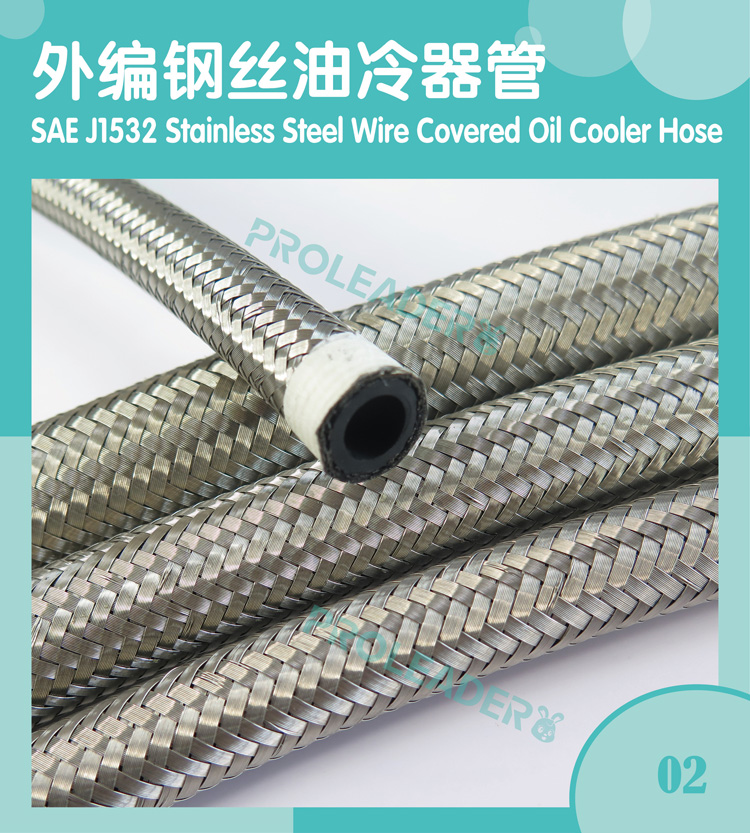

NO.2  SAE J1532 Stainless Steel Wire Covered Oil Cooler Hose

Tube: NBR

Reinforcement: SS 304 braid

Cover: SS 304 braid

Application: Used to refit car oil cooler accessories

Temperature Range: -40°C~+135°C

Powerful driving requires more brake awesome

NO.3  SAE J1401 Hydraulic Brake Hose

Tube: NBR

Reinforcement: Two layer textile braid or two high tensile steel wire braid

Size range:1/8” - 1/4”

Application: Used to transmit pressure to automobile hydraulic brake system

Temperature Range: -40°C~+120°C

Powerful driving requires more brake awesome

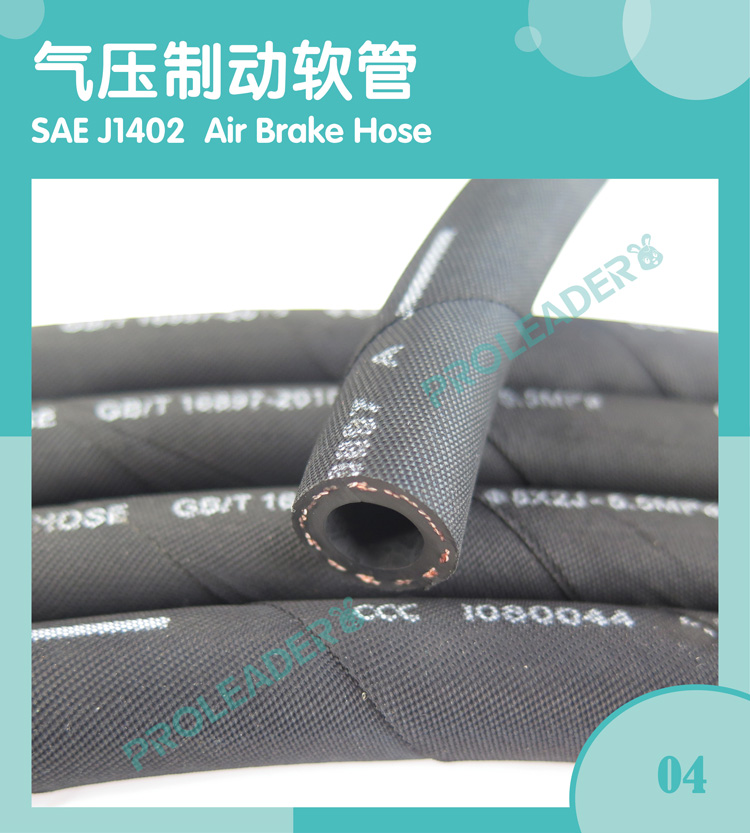

NO.4  SAE J1402  Air Brake Hose

Tube: EPDM

 Reinforcement: One layer textile braid

Cover: EPD

MSize range:3/16” - 1 1/8”

Application: Suitable for transmission pressure of automobile air brake system

Temperature Range: -40°C~+135°C

Powerful driving requires more brake awesome

To support assembly customization, it is necessary to provide the inner diameter of the rubber hose, the thread standard and pitch of the fitting, the overall length, and the clamping angle.

Imported from Germany, professional pressure curve testing, root pressure testing, quality assurance!

Remember to follow us, at 10:00 am on May 23rd Beijing Time, the anchor lady will share this product with you on time!

At the same time, there are free samples and full version product operation manuals for you!
