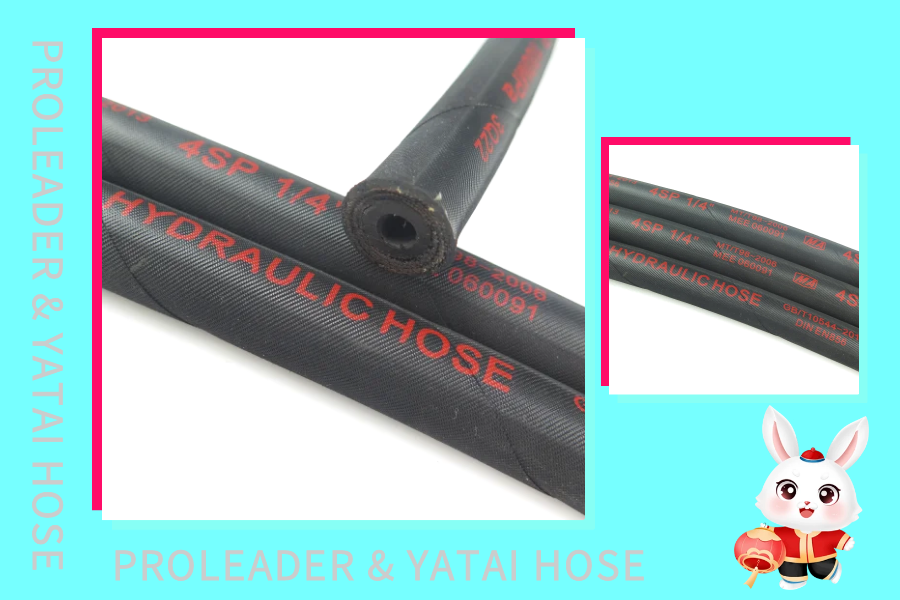

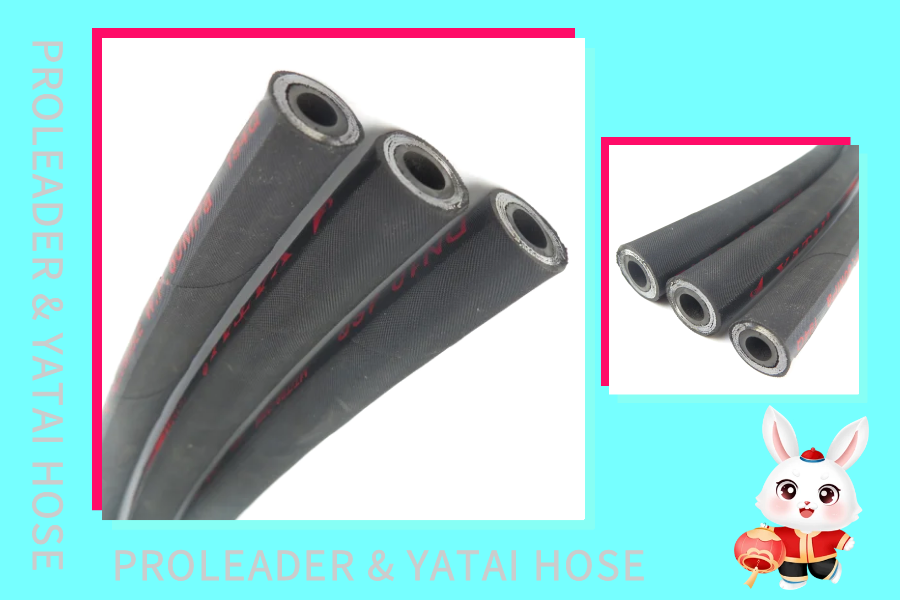

NO.1 EN 856 4SP Wire Spiral Hydraulic Hose
Inner diameter: 1/4"~2"
Inner rubber: NBR
Reinforcement: Four layers of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 175-485bar
Temperature range: -40°C~+100°C
Color: Black Cloth Look
Application: suitable for petroleum-based hydraulic oil

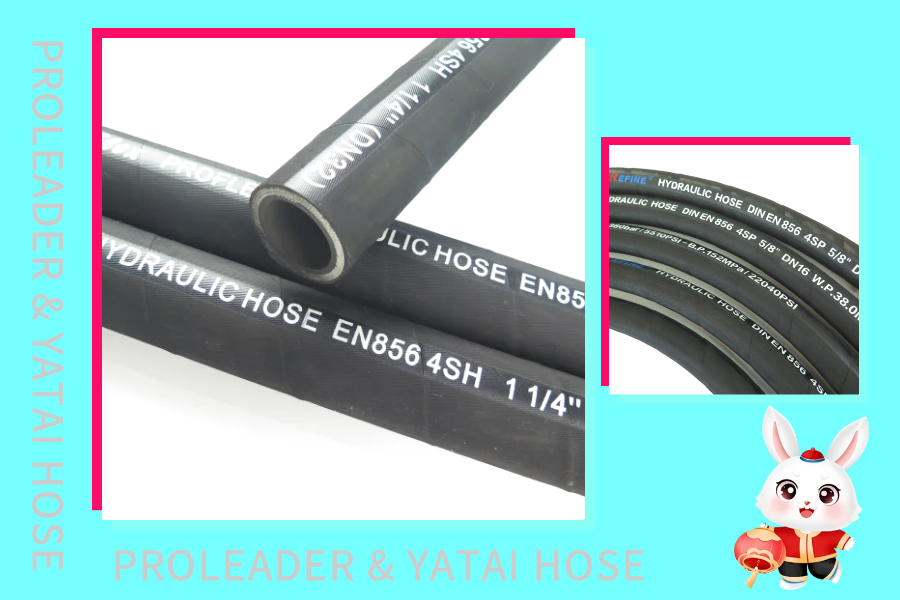

NO.2 EN 856 4SH Wire Spiral Hydraulic Hose
Inner diameter: 3/4"~2"
Inner rubber: NBR
Reinforcement: Four layers of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 250-420bar
Temperature range: -40°C~+100°C
Color: Black Cloth Look
Application: suitable for petroleum-based hydraulic oil
NO.3 SAE 100 R9 Wire Spiral Hydraulic Hose
Inner diameter: 3/8"~2"
Inner rubber: NBR
Reinforcement: Four layers of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 140-315bar
Temperature range: -40°C~+100°C
Color: Black Cloth Look
Application: suitable for petroleum-based hydraulic oil

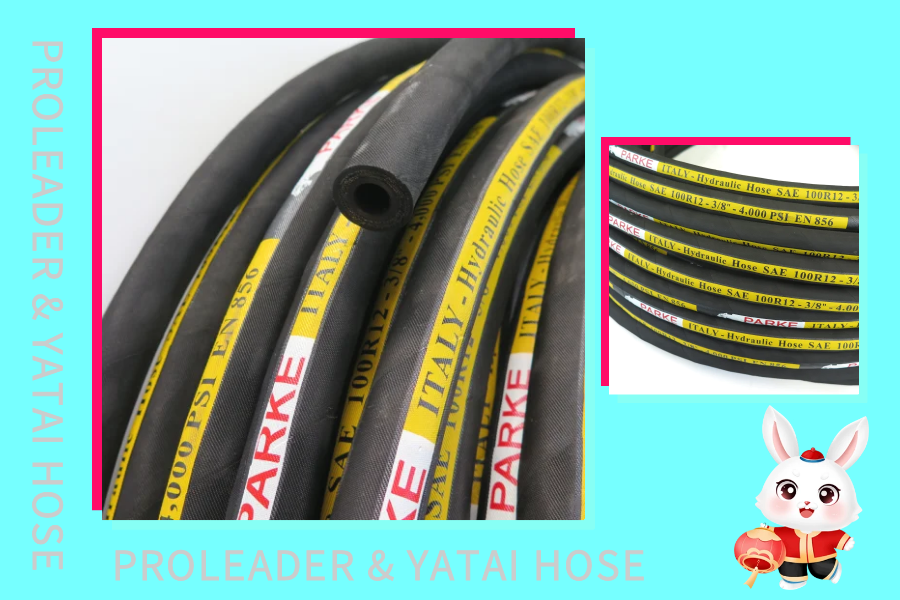

NO.4 SAE 100 R12 Wire Spiral Hydraulic Hose
Inner diameter: 3/8"~2"
Inner rubber: NBR
Reinforcement: Four layers of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 175-280bar
Temperature range: -40°C~+120°C
Color: Black Cloth Look
Application: suitable for petroleum-based hydraulic oil

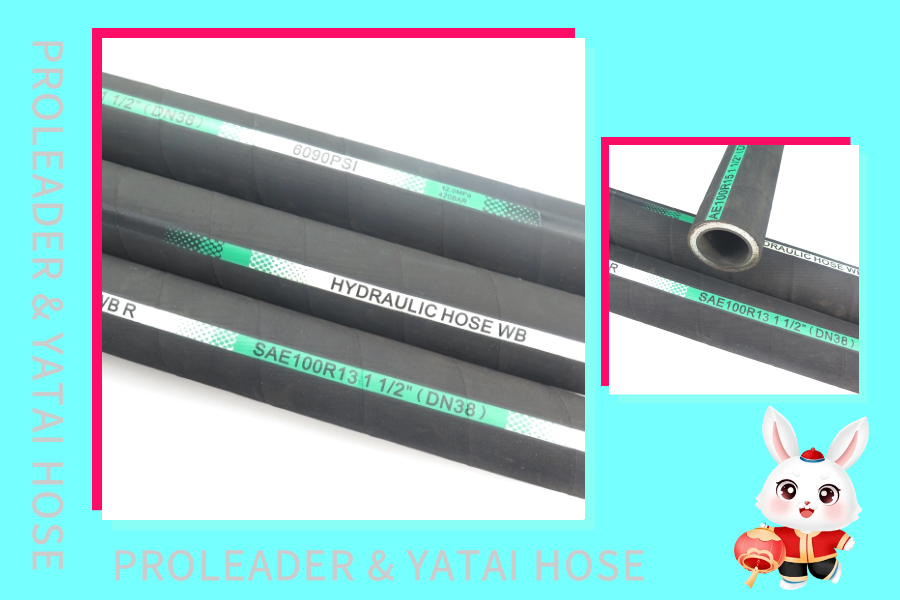

NO.5 SAE100 R13 Wire Spiral Hydraulic Hose
Inner diameter: 3/4"~2"
Inner rubber: NBR
Reinforcement: 4-layer copper-plated steel wire winding (DN6-DN25), 6-layer copper-plated steel wire winding (DN31-DN51)
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 350bar
Temperature range: -40°C~+120°C
Color: Black Cloth Look
Application: suitable for petroleum-based hydraulic oil

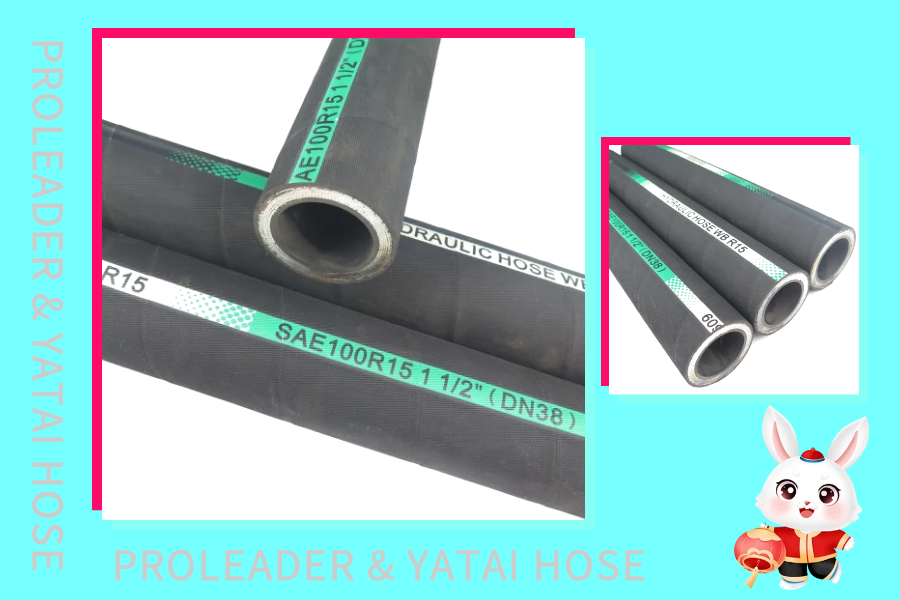

NO.6 SAE 100 R15 Wire Spiral Hydraulic Hose
Inner diameter: 3/8"~2"
Inner rubber: NBR
Reinforcement: 4-layer copper-plated steel wire winding (DN10-DN25), 6 layer copper-plated steel wire winding (DN31-DN51)
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 420bar
Temperature range: -40°C~+120°C
Color: Black Cloth Look
Application: suitable for petroleum-based hydraulic oil
