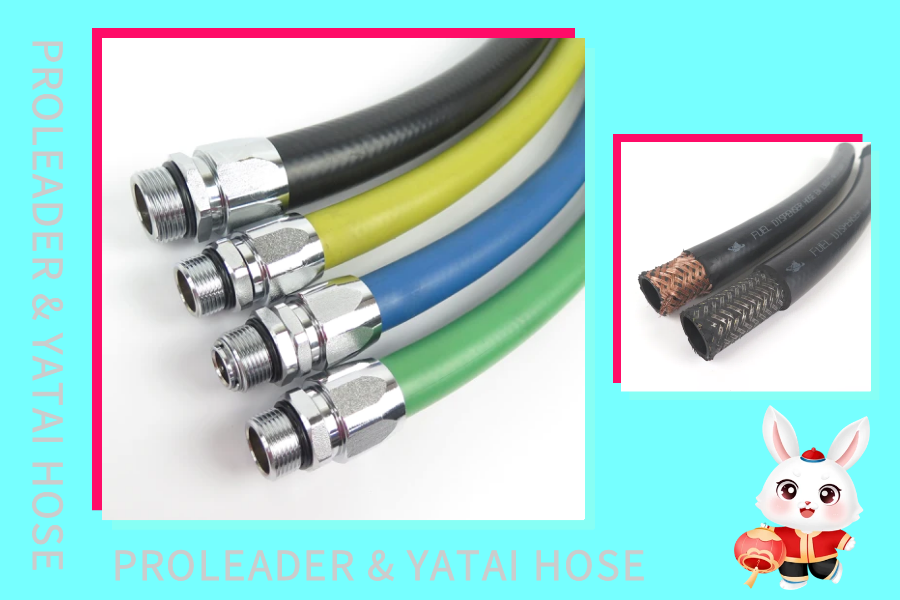

NO. 1 EN 1360 Fuel Dispenser Hose
Internal diameter: 19mm, 25mm
Inner rubber: NBR
Outer rubber: oil-resistant and weather-resistant CR
Reinforcement: Type 2 is a layer of polyester fiber braid + conductive copper wire;
Type 3 is a layer of copper-plated steel wire braid
Temperature range:-40°C~ 100°C
Working pressure: 16Bar
Appearance color: black/color, smooth/wrapped
Standard: Suitable for refueling equipment to transport aviation kerosene, ethanol, gasoline, diesel.

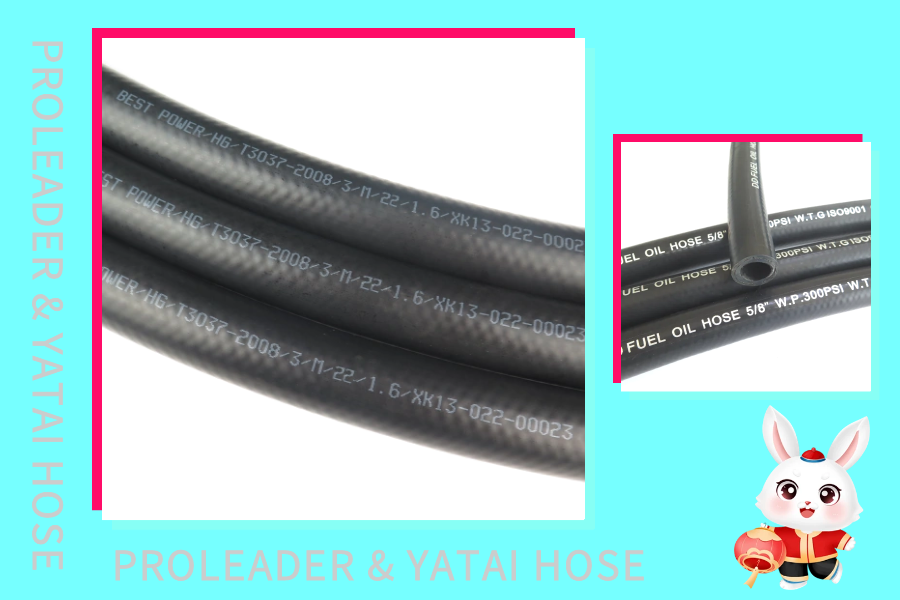

NO. 2 Vapor Recovery Hose
Internal diameter: 16mm, 19mm, 22mm
Inner rubber: NBR
Outer rubber: oil-resistant and weather-resistant CR
Reinforcement: one layer of copper-plated steel wire braid
Temperature range:-40°C~ 100°C
Working pressure: 16Bar
Appearance color: black/color, smooth/wrapped
Standard: It is used in the vacuum-assisted oil and gas recovery system of Section II. Oil and gas are sucked back from the inner pipe during refueling. Its superior bending resistance reduces the jump number of computer meters.

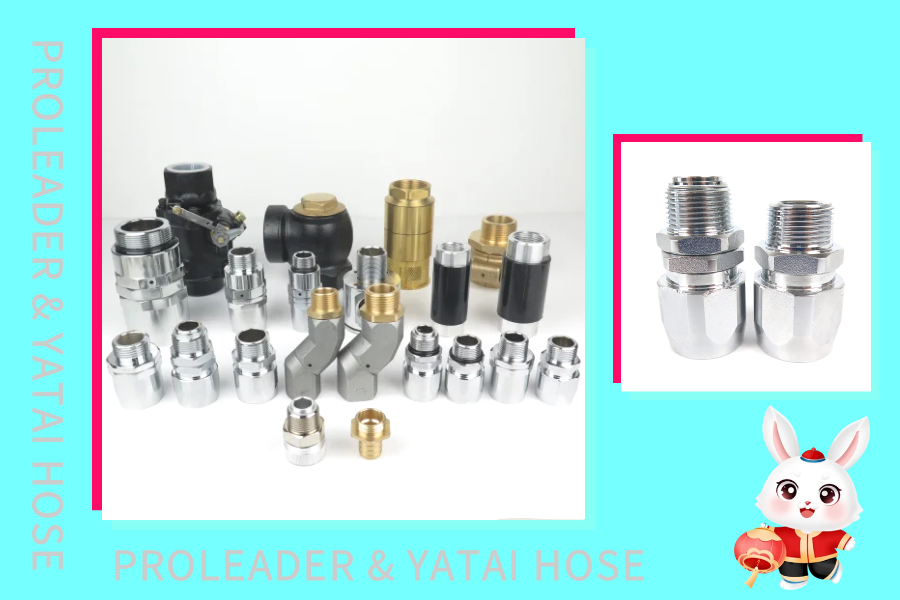

NO. 3 Fuel dispenser fittings of fuel dispenser connector
① New type refueling fitting
Material: chrome plated copper; Thread type: NPT/G/BSPT
② Buckle fuel dispenser fitting
Material: brass, aluminum, stainless steel; Thread type: NPT/G/BSPT
③ Oil and gas recovery fitting
Material: copper, stainless steel; Thread type: M34 * 1.5
④ Oil and gas separation fitting
Material: aluminum alloy, brass; Thread type: M34 * 1.5 trachea thread G1/4"
⑤ Variable diameter copper-aluminum rotary fitting
Material: aluminum alloy, brass; Thread type: NPT/G/BSPT
⑥ Universal fitting
Material: zinc alloy/copper; Thread type: NPT/G/BSPT

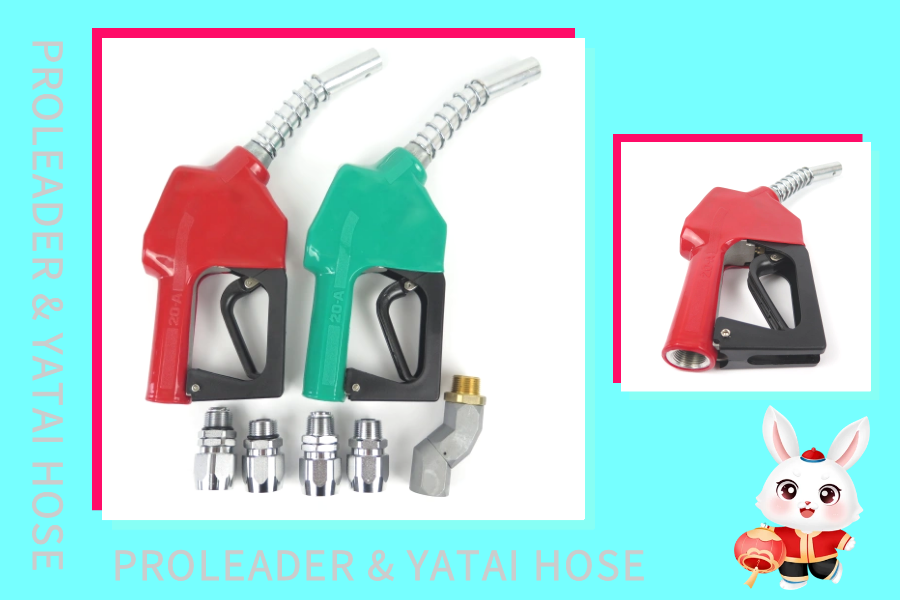

NO. 4 Fuel nozzle
① 11A self-sealing fuel filling nozzle
Material: aluminum alloy
Oil inlet: 3/4 "NPT/BSPP thread
Application: Suitable for filling kerosene, gasoline, diesel and other light oils. The self-sealing device designed by the gun body can ensure that the refueling nozzle is automatically closed when the container is full to prevent medium overflow.
② 11B self-sealing fuel nozzle
Material: aluminum alloy
Oil inlet: 3/4 "NPT/BSPP thread
Application: The 11B refueling nozzle can only be opened when the fuel dispenser is started and the pressure is sensed in the oil hose; once the pressure disappears, the refueling nozzle automatically closes.
(3) 120L self-sealing refueling nozzle
Flow rate: 5-120L/min
Oil inlet and outlet: 1 inch
Application: The medium is gasoline, ethanol gasoline, light diesel, heavy diesel, kerosene, etc. Suitable for large and high-flow gas stations, heavy trucks, cars and fleet services. High flow refueling nozzles will improve work efficiency and sales profit

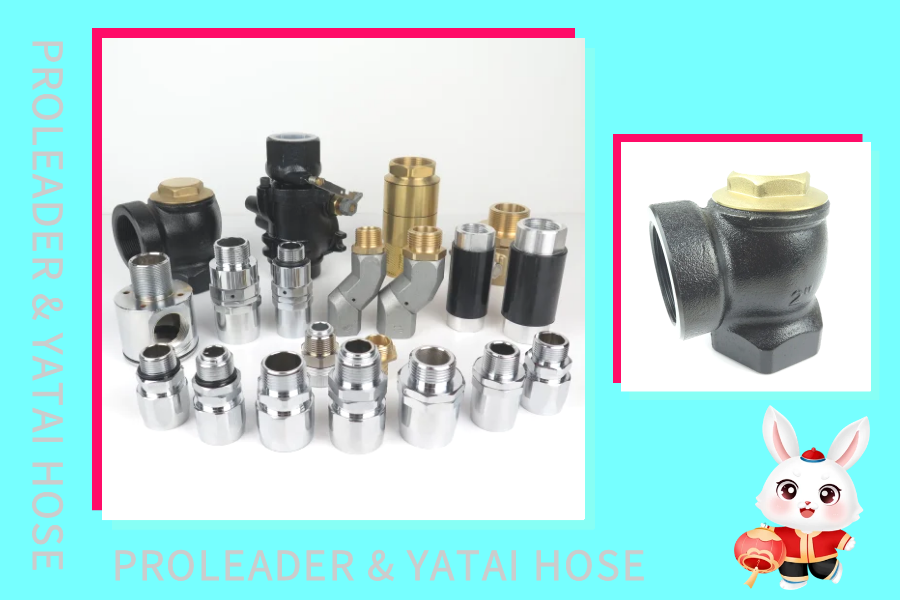

NO. 5 Fuel dispenser valves of fuel dispenser
① New type common pull-off valve
② Ordinary pull-off valve
③ Pipeline check valve
④ Emergency shut-off valve
⑤ Double door bottom valve
⑥ Triangle check valve
⑦ Oil and gas recovery pull-off valve
One-stop service: hose, fitting, valve, nozzle and hose assembly. At present, our PROLEADER & YATAI HOSE Industry will provide free assembly withholding service for new and old customers in 2023. Good products and policies are good. We look forward to your patronage!
