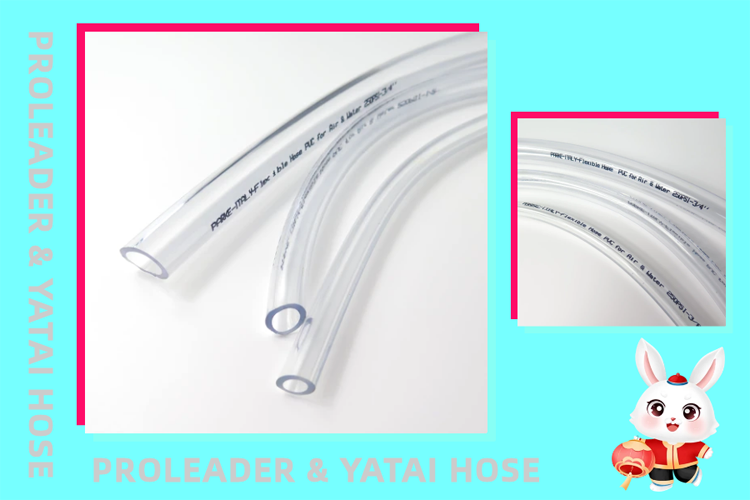

NO.1 PVC Clear Hose
ID: 3mm-50mm
Material: PVC
Temperature range:-5 °C ~ 65 °C
Working pressure: 3-5Bar
Appearance color: smooth surface, uniform texture, transparent white
Standard: food grade/industrial grade customized selection, food grade in line with FDA standards, through REACH and European food grade testing.
Applications: widely used in various liquid transmission, food transfer, drainage pipes, low-pressure air, drinking water transportation. Products can also be customized according to media.

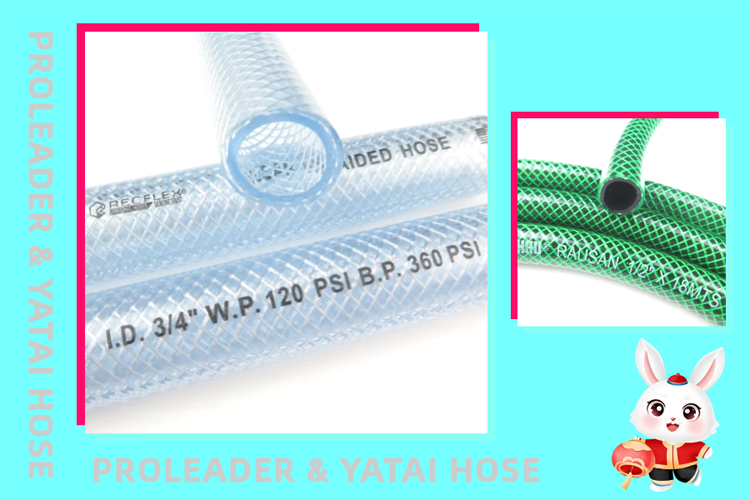

NO.2 PVC Fiber Reinforced Hose
ID: 4mm-76mm
Inner and outer rubber: PVC polyvinyl chloride
Reinforcement: high strength polyester polyester filament
Temperature range:-5 c ~ 65 c. The low temperature resistant hose can be used at -40°C, and the high temperature resistant hose can be used continuously at 100°C
Working pressure: 4-10Bar
Appearance color: transparent white, green, blue, etc., red and blue bars can be customized
Standard: food grade/industrial grade customized selection, food grade in line with FDA standards, through REACH and European food grade testing.
Applications: used in agricultural irrigation, industrial raw material transportation, chemical medicine, petrochemical and other fields. It can transport liquid, gas or powdered food, such as milk beverage, liquor, beer and jam.

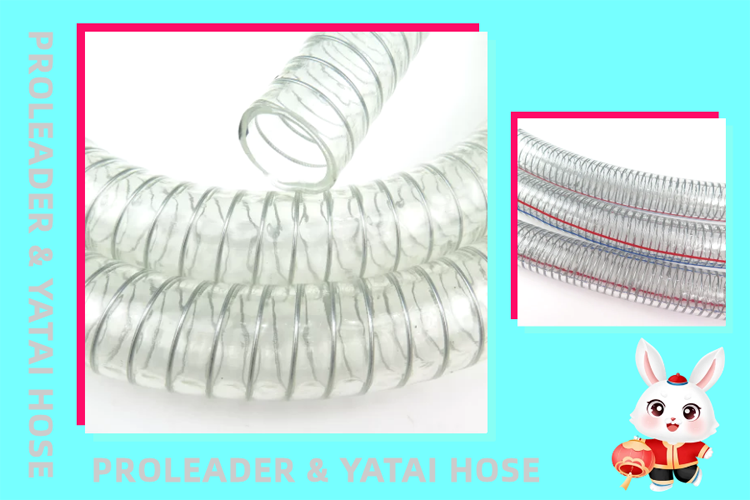

NO.3 PVC Steel Wire Reinforced Hose
ID: 19mm-102mm
Inner and outer rubber: PVC polyvinyl chloride
Reinforcement: high-strength spiral steel wire, anti-static steel wire tube using copper-plated steel wire
Temperature range:-5 c ~ 65 c. The low temperature resistant hose can be used at -40°C, and the high temperature resistant hose can be used continuously at 100°C
Working pressure: 5Bar
Appearance color: transparent white, red and blue strips can be customized
Standard: food grade/industrial grade customized selection, food grade in line with FDA standards, through REACH and European food grade testing.
Applications: conveying industrial water, oil, sewage, powder, chemical raw materials, etc., food factory conveying fruit juice, milk, drinking water, distillery conveying liquor, beer, etc. It is an ideal pipe for conveying liquid, gas, powder and particles.

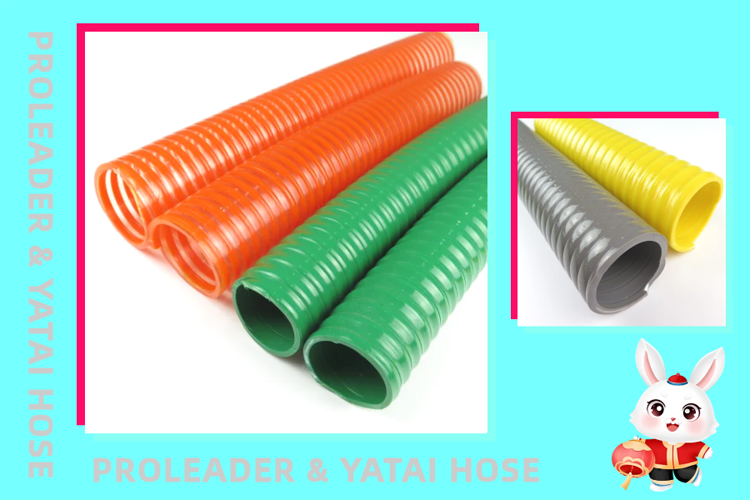

NO.4 PVC Suction Hose
ID: 19mm-200mm
Inner and outer rubber: PVC polyvinyl chloride
Reinforcement: hard polyvinyl chloride
Temperature range:-5 c ~ 65 c
Working pressure: 2-8Bar
Appearance color: solid color, color and transparent white
Standard: convex rib pipe/flat rib pipe
Applications: suitable for vacuum suction powder, granule, water and oil in industry, agriculture, water conservancy and civil engineering. It is an excellent substitute for rubber tube and metal tube.
