Metric Thread Swaged Hose Fitting
The thread specification is usually indicated by "M", and there is usually no cross bar at the nut

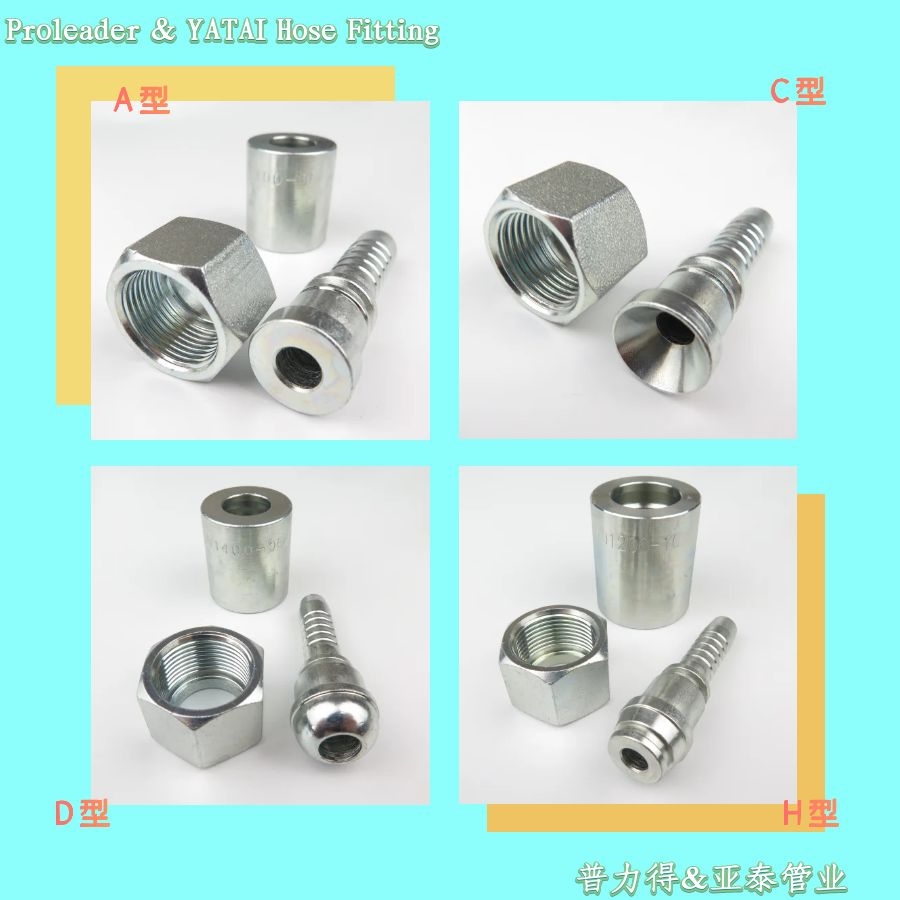

Four types of head types A, C, D, and H are commonly used, with common codes as follows:
Type A: 20211, 20241, 20291
Type C: 20271, 20741, 20791
Type D: 20111, 20141, 20191
H-type light series: 20411, 20441, 20491
H-type weight system: 20511, 20541, 20591

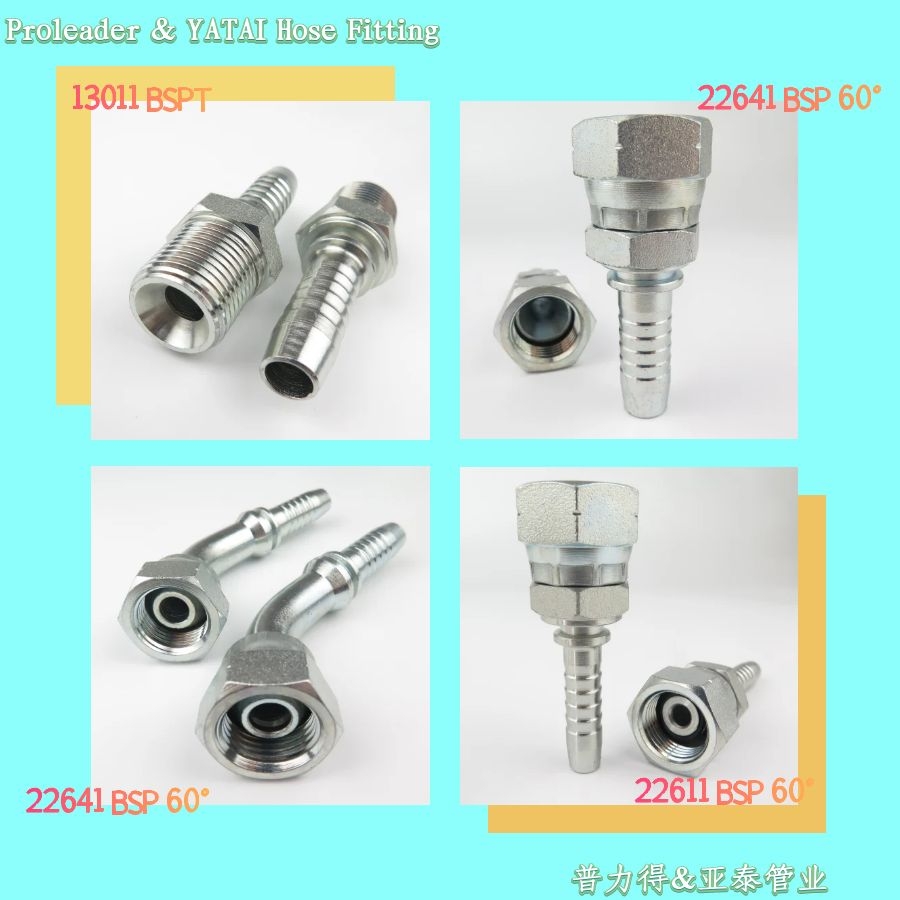

BSP,BSPT & JIS Swaged Hose Fitting
The thread specification is usually indicated by "G", and there is one bar at the nut
Includes BSP threads, BSPT threads, and JIS threads
Common codes include: 12611, 22611, 29611, etc

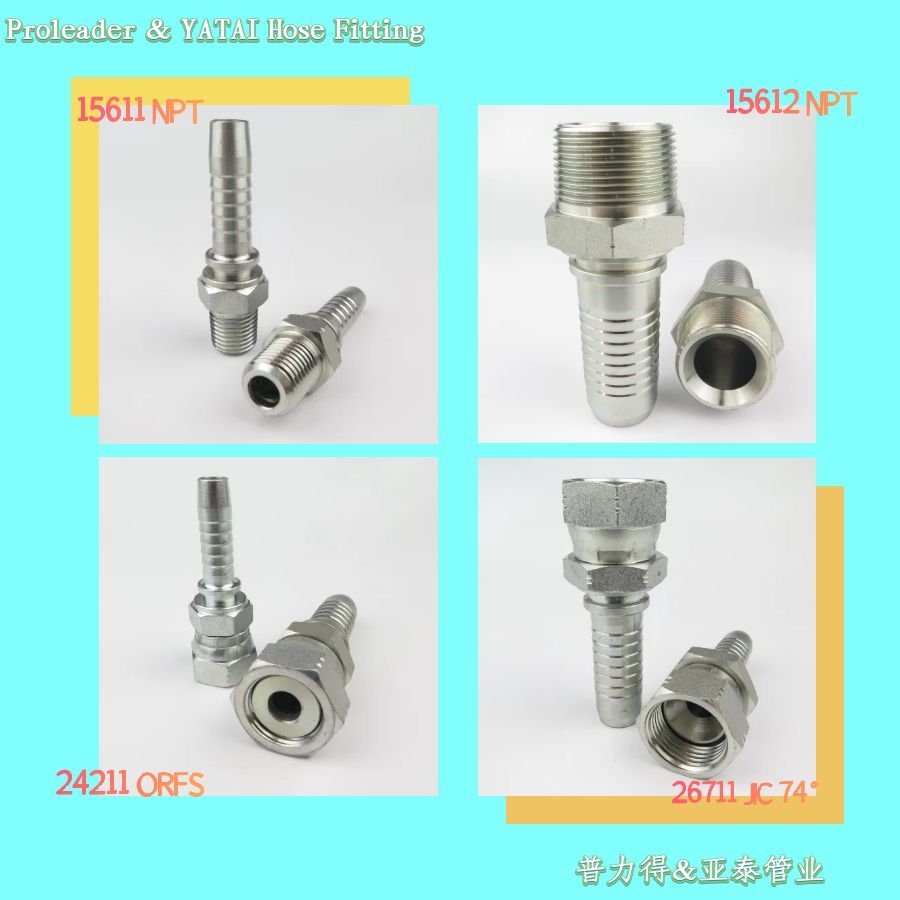

NPT,ORFS & JIC Swaged Hose Fitting
Thread specifications are usually expressed in inches without any letters, and there are two bars at the nut
Includes NPT threads, ORFS threads, and JIC threads
Common codes include: 15611, 24211, 26711, etc

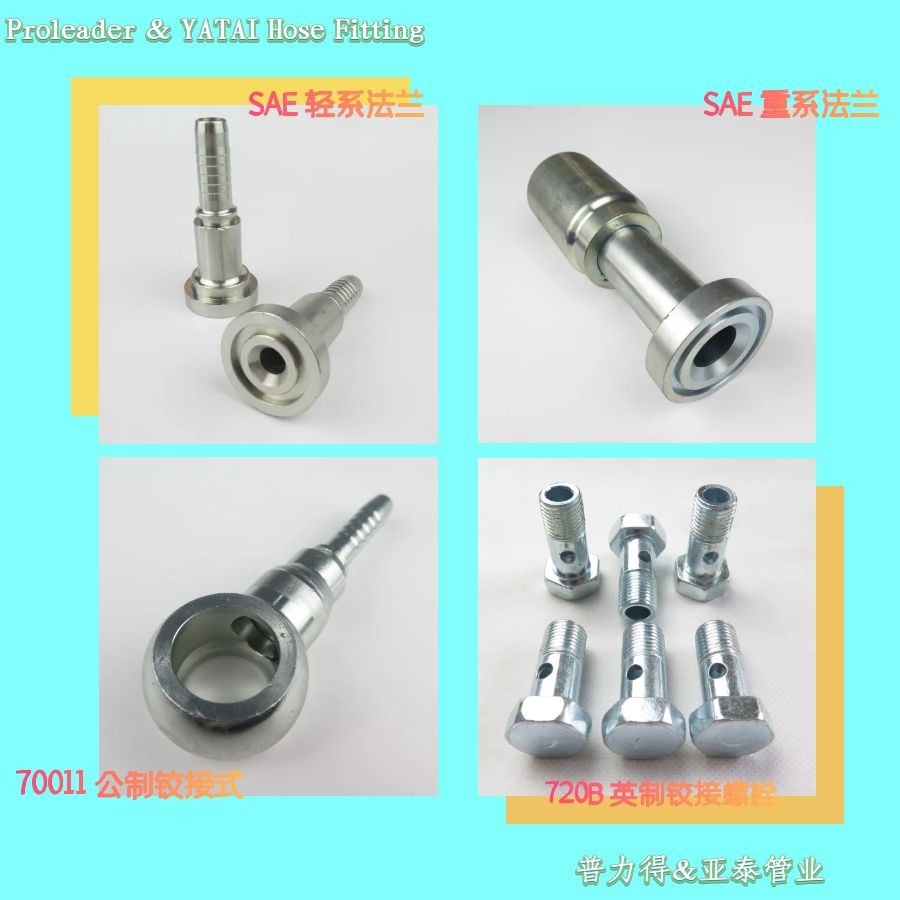

SAE Flange & Banjo Swaged Hose Fitting
Flanges are divided into light series and heavy series, and the codes are usually represented as 87311 and 87611
Articulated fittings include both BSP and metric systems, and the threads are usually represented by "G" or "M"
The code is usually represented as 70011, 72011
Correspondingly, there are also BSP and metric bolts, usually represented by codes: 700M, 720B
The above connectors take the braided pipe code as an example.
If used for winding the pipe code, it should be updated, such as 20412
To support assembly customization, it is necessary to provide the inner diameter of the rubber hose, the thread standard and pitch of the fitting, the overall length, and the clamping angle.
