1. Definition: Dispenser hose, namely oil pump special tubing, is a kind of industrial hose
2. APPLICATIONS：It is suitable for general fuel dispenser equipment to transport aviation kerosene, gasoline, diesel and other mineral oils. It is widely used in airports, oil storage terminals, etc. It adopts anti-static, fuel, and high-intensity UV process resistance, which greatly extends the service life of fuel hoses
3. parameter
CONTINUOUS SERVICE TEMPERATURE RANGE:
40°F - 250°F/-40°C- 121°C
INSERT：Detachable Hose Ftting
TUBE: Oil synthetic rubber
REINFORCEMENT: Type 2：One textile braid plus a copper wire
Type 3: One high tensile steel braid
COVER: CR&NBR synthetic rubber
APPLICATIONS STANDARD: EN 1360 HG 3037 EN 13483
HOSE FITTINGS: BSP NPT BSPT

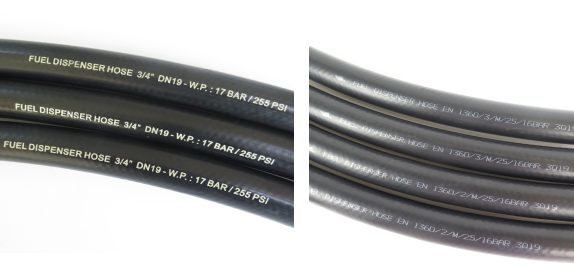

Normal dispenser hose size 19mm/25mm,as follows:

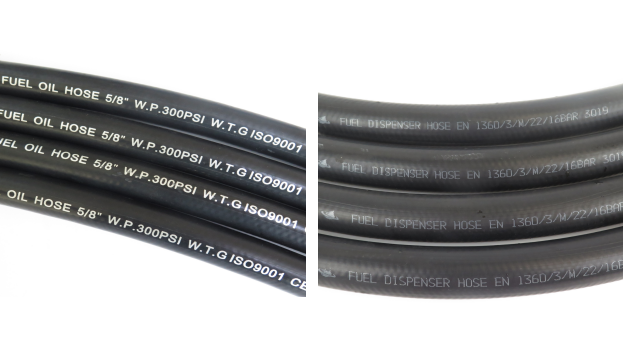

Normal dispenser hose size 16mm/22mm, as follows:

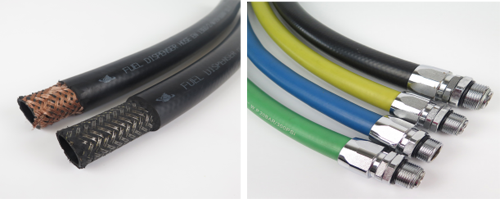

One layer of wire + copper wire / one layer of steel wire + fuel dispenser pipe assembly, as shown in the pictures
We not only produce dispenser hose, but also provide one-stop service such as fitting joints and valves. The joints and valves are shown as follows:

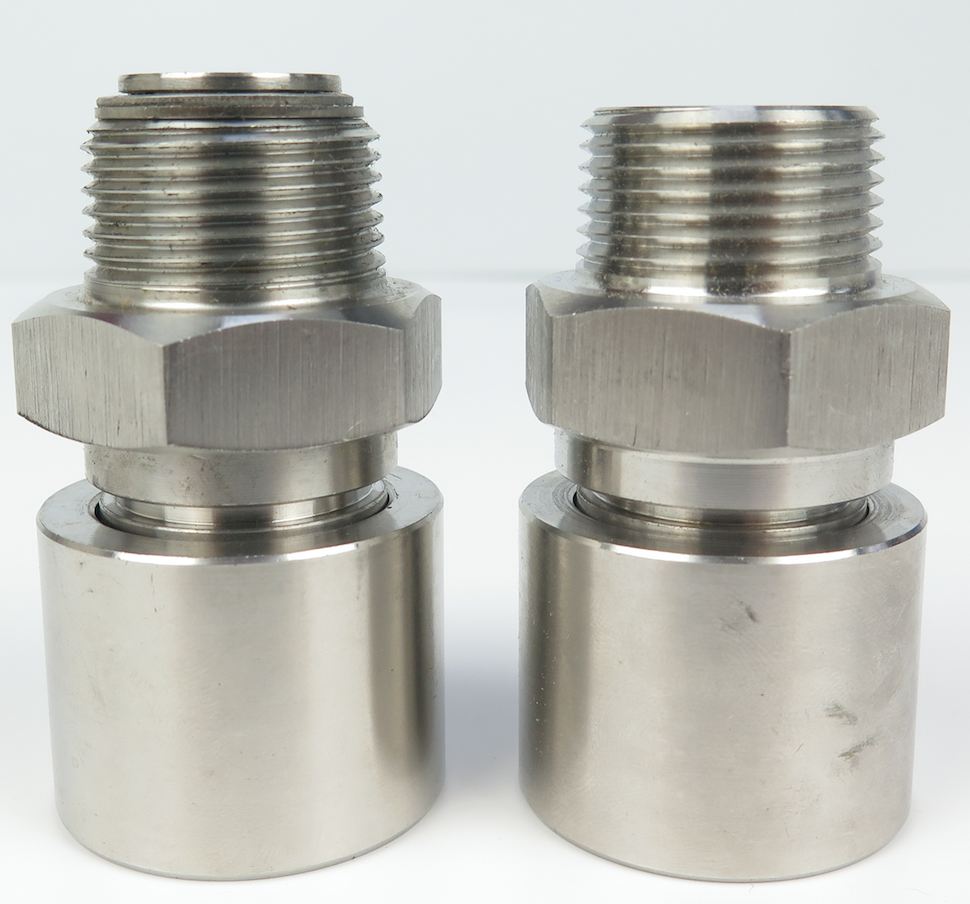

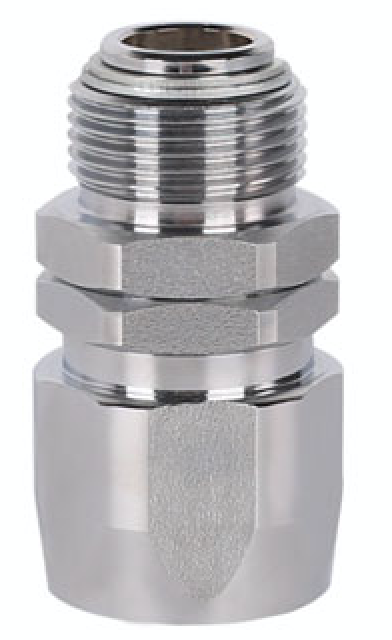

Name: New Hose Fitting
Thread size: 3/4" 1"
Thread Type: NPT/G/BSP

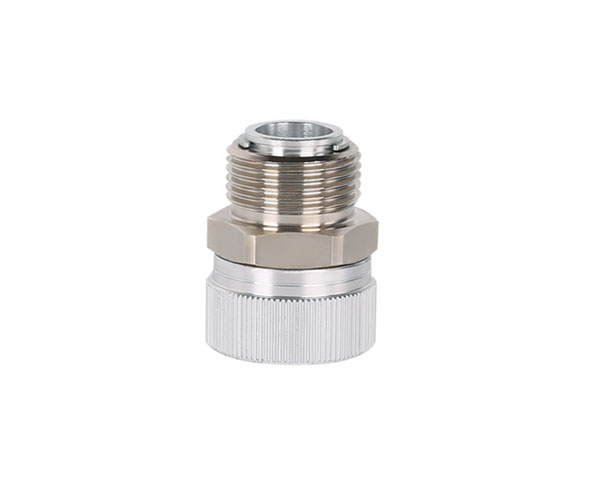

Name: Pinch Hose Fitting
Thread size: 3/4" 1"
Thread Type: NPT/G/BSPT

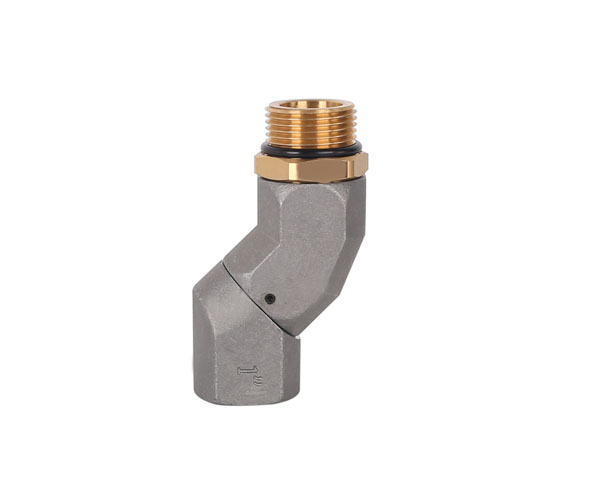

Name:Variable diameter copper
and aluminum rotary Fitting
Thread size:
D1:3/4" to 1" 1" to 3/4"
D2:3/4" to 1" 1" to 3/4"
Thread Type: NPT/G/BSPT

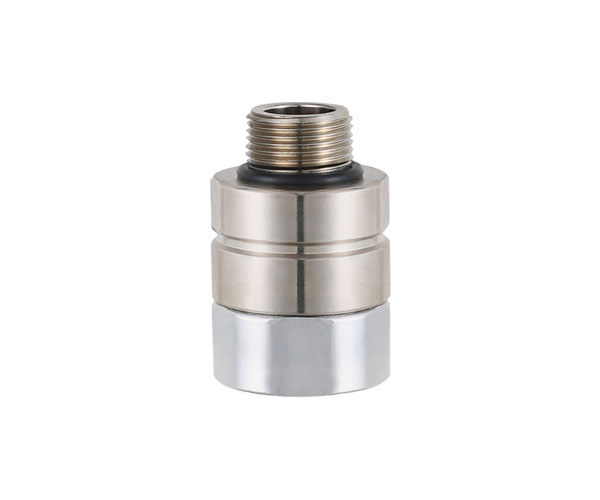

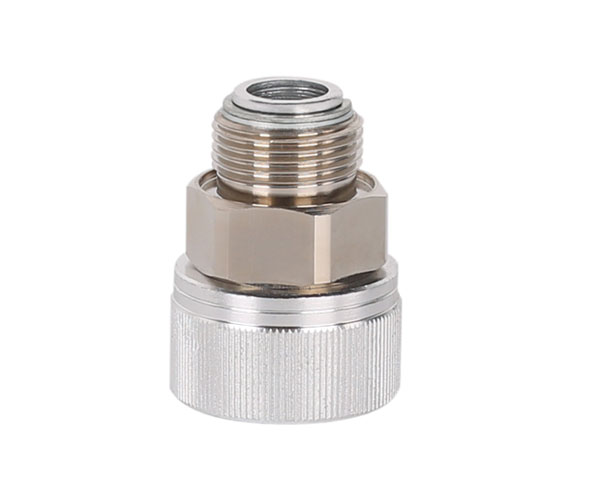

Name:copper and aluminum rotary Fitting
Thread size:
D1:1" 3/4" 1 1/2"
D2:1" 3/4" 1 1/2"
Thread Type: NPT/G/BSPT

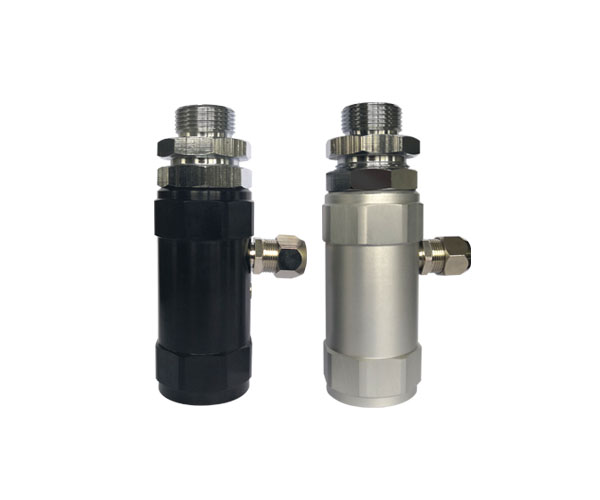

Name:Oil-gas separation Fitting
Thread size:D: M34*1.5/D1:3/4" 1"
Thread Type: NPT/G/BSPT
Name:Universal Fitting
Thread size:D1:1"3/4"/D2:1" 3/4"
Thread Type: NPT/G/BSPT

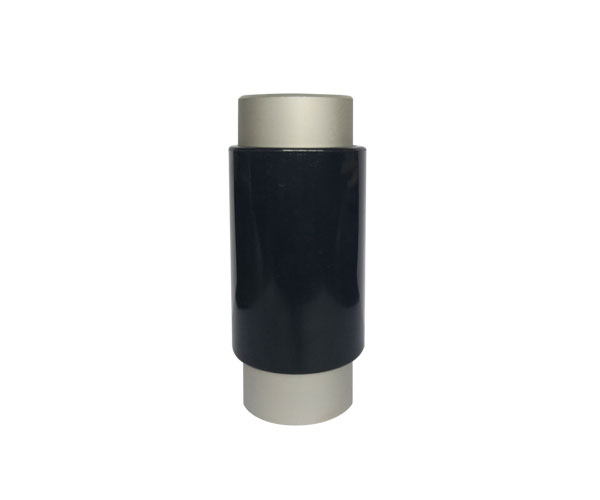

Name: Ordinary pull-off valve
Thread size: D1 Thread:3/4" 1";
D2 Thread:3/4" 1”
Thread Type: NPT/G/BSPT
Name: New type ordinary break valve
Thread size: D1 thread:3/4" 1"
D2 thread :3/4" 1"
Thread Type: NPT/G/BSPT
Name: Pipeline check valve
Thread size: D1 Thread :2" 1 1/2"
D2 Thread :2" 1 1/2"
Thread Type:NPT/G/BSPT

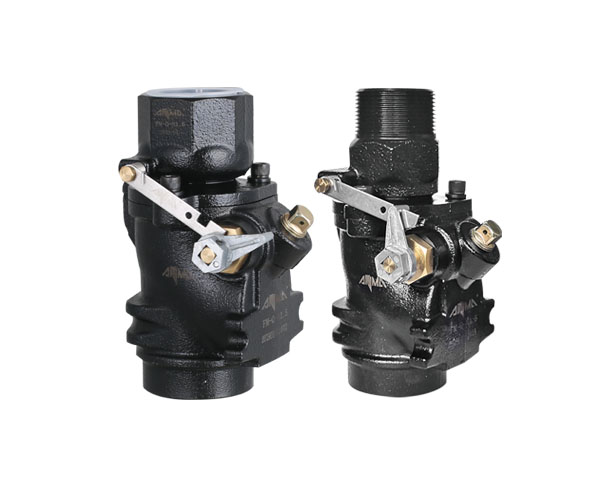

Name:Emergency shut-off valve
Thread size: D Thread :NPT 1 1/2"
D1Internal and external
thread:NPT 1 1/2"
Thread Type:NPT

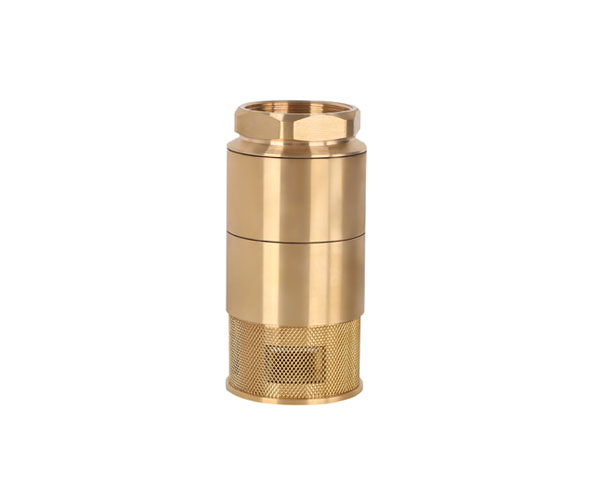

Name:Double door bottom valve
Thread size:D Thread:3" 2-1/2" 2" 1-1/2" 1"

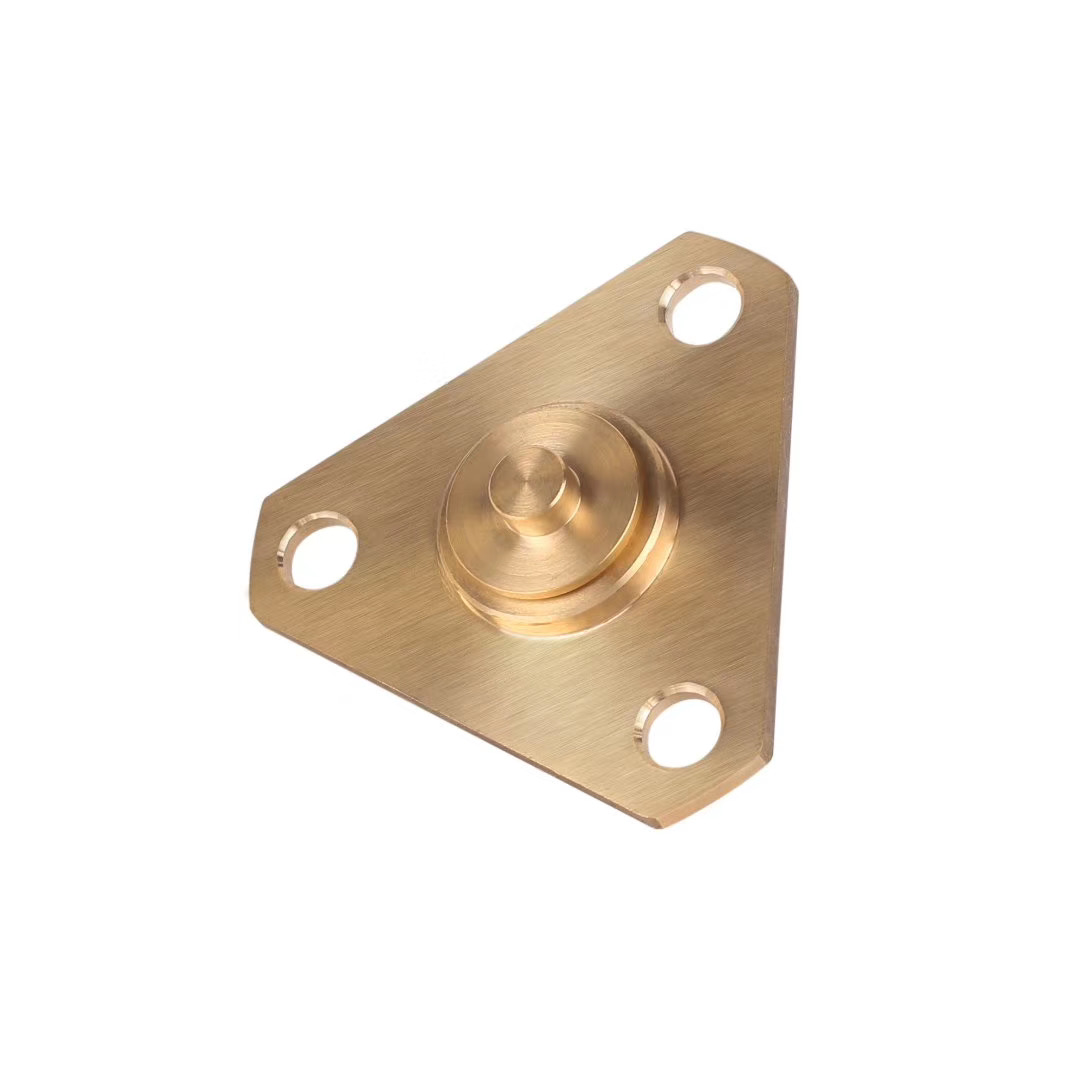

Name:Triangle check valve
Thread size:Flange connection
hole distance68mm
You only need to tell us the inner diameter of the tanker pipe, the type of connector and valve you need. The professional technical installation team of Yatai will install the pipe connector for you. You only need to directly connect it to the machine after receiving the goods. use.
Due to limited space, other joint valves will not be shown here. If you have any needs, the sales and technical team of Yatai will provide you with professional services at any time.
