How much do you know about the hose on the high-pressure cleaning machine

Mar. 09, 2021

How much do you know about the hose on the high-pressure cleaning machine

The high-pressure water jet of the high-pressure cleaning equipment has composite crushing effects such as scouring, wedge splitting, shearing, grinding, etc., so it can immediately break the scales off and wash away, and then realize the separation of the scale layer and the pipe wall, and then reach The purpose of cleaning, and can achieve the goals of good cleaning quality, low cleaning cost, high efficiency, no pollution to the environment, high safety, and wide application range.

In high-pressure cleaning equipment, in addition to cleaning the hydraulic support is very important, the high-pressure hose used by the machine also attracts attention. So how to choose the hose for high-pressure equipment, Yatai will help you:

How much do you know about the hose on the high-pressure cleaning machine

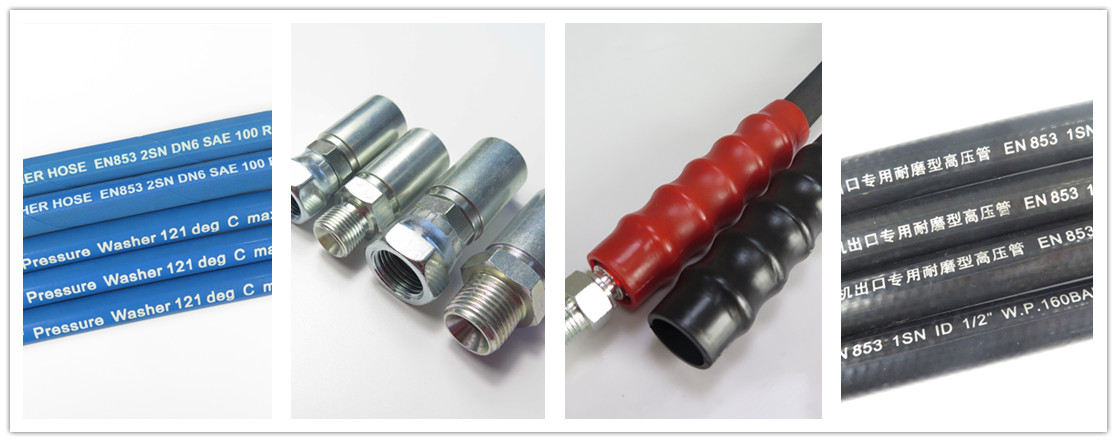

1. High pressure jet washer hose

·Hose application: high-pressure water generation machine is used to generate high-pressure water, and the pressure is converted into a highly concentrated water jet flow through the nozzle high-pressure cleaning hose, which can complete various processes such as cleaning, cutting, and crushing, and can transport cold water, hot water, and thin Sand, etc., used for medium-pressure, high-pressure cleaning, water sandblasting, rust removal, paint removal, concrete cleaning, high-pressure cleaning machine application

·Hose structure:

Inner tube: oil-resistant synthetic rubber;

Reinforcement : one or two layers of high tensile steel wire braiding;

Outer layer: weather-resistant synthetic rubber

·Common sizes: 1/4”, 5/16”, 3/8”, 1/2”, other specifications can be customized

·Temperature range: -40°C-180°C

·Executive standard: SAE 100 R1/R2; EN 853 1SN/2SN

·Hose appearance: cloth grain surface or smooth surface

·Common colors: blue, gray, black, etc.

2. Pressure Washer Hose

·Hose application: used for medium pressure, high pressure cleaning, municipal pipe dredging, pipe dredging machine, conveying cold water, hot water, etc.

·Hose structure:

Inner tube: oil-resistant synthetic rubber;

Reinforcement layer: one or two layers of high tensile steel wire braiding;

Cover: super wear-resistant, corrosion-resistant, weather-resistant synthetic rubber

·Common sizes: 1/4”, 5/16”, 3/8”, 1/2”, other specifications can be customized

·Temperature range: -40°C-180°C

·Executive standard: SAE 100 R1/R2; EN 853 1SN/2SN

·Hose appearance: cloth grain surface or smooth surface

·Color: blue, gray, black, etc.

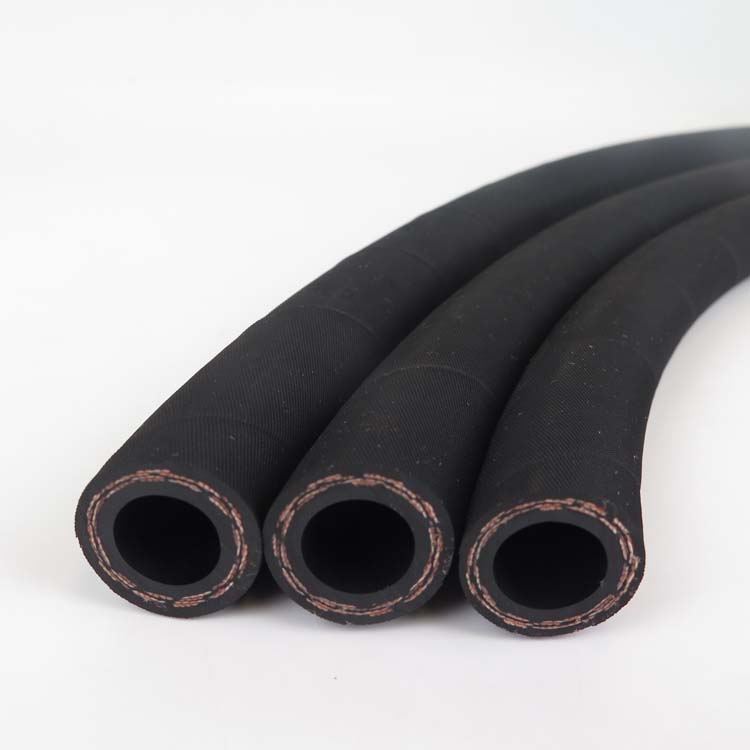

3. Ship Warehouse Washer Hose

·Hose application: hoses for transporting detergent or water, used for cleaning cruise ships and other petrochemical storage tanks

·Hose structure:

Inner tube: SBR synthetic rubber;

Reinforcement : high-strength synthetic cord;

Cover: SBR synthetic rubber

Conductivity: It has good antistatic performance. Copper wires are implanted in the tube and connected to the two ports of the tube.

·Common sizes: 1 1/2”, 1 3/4”, 2”, other specifications can be customized

·Temperature range: -30°C-100°C

·Appearance: fabric surface

·Colour: Black

How much do you know about the hose on the high-pressure cleaning machine

For the high-pressure hose selected for high-pressure cleaning equipment, its inner diameter must match the diameter required by the high-pressure pump. It must be determined according to the technical parameters of the high-pressure pump. According to its parameter requirements, choose a hose with a matching pressure. Do not use operating methods that exceed the actual pressure it accepts, otherwise it will affect the normal operating life of the high-pressure hose. In addition, the high-pressure hose of the high-pressure cleaning equipment must be properly used, protected and maintained in strict accordance with the relevant rules.
