KEY PERFORMANCE

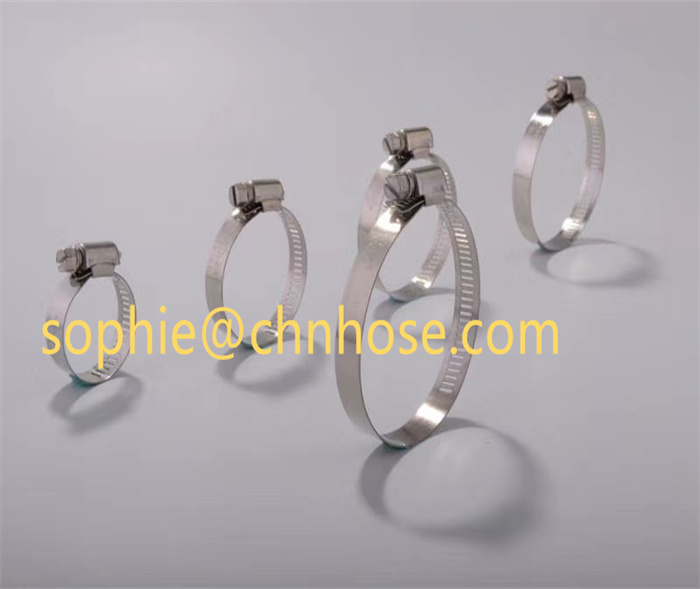

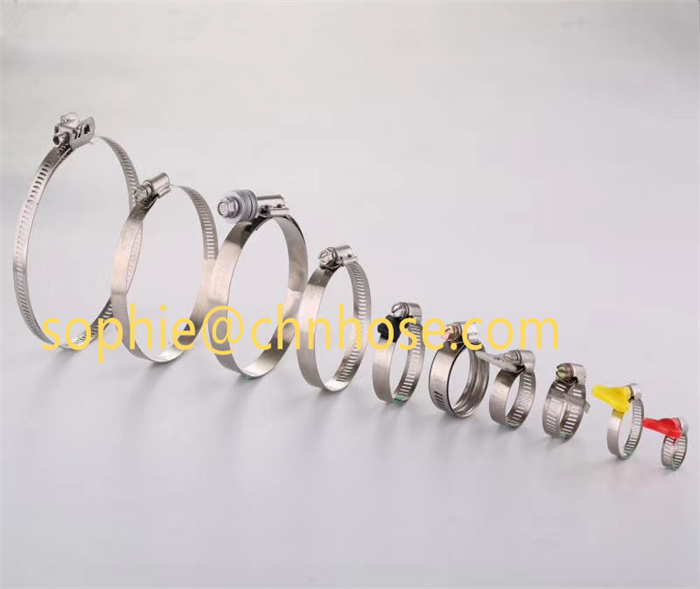

● American clamp using both carbon steel and stainless steel materials
● big torque and take up little space, easy to assembly in narrow space
● Standard：SAE J1508
● Such hose hoops lightweight,compact design makes it in the least restrictive environment to easily install
APPLICATIONS
● This kind of clamp wildly used in car hardware market, and also can be used in the maintenance of household plumbing and liquefied gas hose
| 货号 | 产品货号 Item NO. | |||
| SAE No. | LTMS8.0(bandwidth 8.0mm) | LTMS12.7(bandwidth 12.7mm) | ||
| inch | mm | inch | mm | |
| 04 | 3/8-5/8 | 10-16 | 3/8-5/8 | 10-16 |
| 05 | 1/2-3/4 | 13-19 | 1/2-3/4 | 13-19 |
| 06 | 1/2-7/8 | 12-22 | 5/8-718 | 16-23 |
| 08 | 5/8-1 | 16-25 | 3/4-11/16 | 19-27 |
| 10 | 3/4-1.1/16 | 19-29 | 5/8-11/4 | 16-32 |
| 12 | 7/8-1.1/4 | 22-32 | 3/4-11/2 | 19-38 |
| 16 | 1-1.1/2 | 25-38 | 3/4-13/4 | 19-44 |
| 20 | 1.1/4-1.3/4 | 32-44 | 11/4-2 | 32-51 |
| 24 | 1.3/8-2 | 35-51 | 11/2-21/4 | 38-57 |
| 28 | 1.1/2-2.1/4 | 38-57 | 19/16-21/2 | 40-64 |
| 32 | 1.1/2-2.3/8 | 35-60 | 113/16-23/4 | 46-70 |
| 36 | 1.3/4-2.1/2 | 44-64 | 21/4-3 | 57-76 |
| 40 | 2-2.3/4 | 51-70 | 25/8-31/4 | 67-83 |
| 44 | 2.3/4-3.1/4 | 64-76 | 29/16-31/2 | 65-89 |
| 48 | 2.13/16-3.1/2 | 70-89 | 213/16-33/4 | 72-95 |
| 52 | 2.13/16-3.3/4 | 72-95 | 31/16-4 | 78-101 |
| 56 | 3.1/16-4 | 78-101 | 35/16-41/4 | 84-108 |
| 60 | / | / | 39/16-41/2 | 91-114 |
| 64 | / | / | 41/8-5 | 105-127 |
| 72 | / | / | 45/8-51/2 | 117-140 |
| 80 | / | / | 51/8-6 | 105-152 |
| 88 | / | / | 59/16-61/2 | 114-165 |
| 96 | / | / | 61/8-7 | 156-178 |
| 104 | / | / | 7-8 | 177-203 |
| 116 | / | / | 8-9 | 203-228 |
| 120 | / | / | 9-10 | 228-254 |
| 材质 Material | 钢带 Band | 箍头 Housing | 螺丝 Screw | 建议安装扭力 Suggested Install Torque |
| W1 | Zinc Plated Steel | Zinc Plated Steel | Zinc Plated Steel | Band(8mm)--2.1Nm Band(12.7mm)--3.8Nm |
| W2 | AISI SS201/SS301 | AISI SS201/SS301 | Zinc Plated Steel | Band(8mm)--2.1Nm Band(12.7mm)--6Nm |
| W2B | AISI SS201 | Zinc Plated Steel | Zinc Plated Steel | |
| W4 | AISI SS201/SS301/SS304 | AISI SS201/SS301/SS304 | AISI SS201/SS301/SS304 | |
| W5 | AISI SS316 | AISI SS316 | AISI SS316 |
